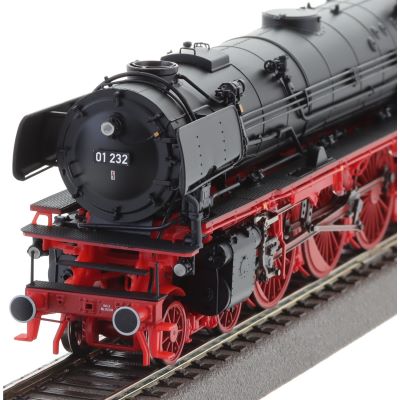

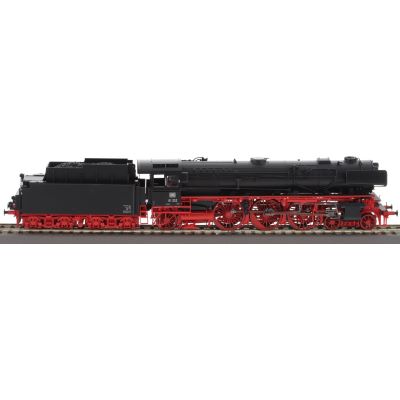

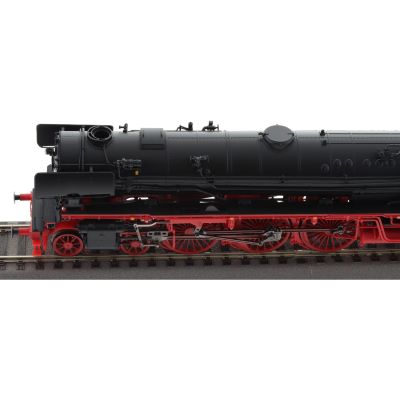

Brawa 70060 steam locomotive 01 232, DB, Ep.III

From 1958, the Deutsche Bundesbahn equipped 50 class 01 locomotives with the so-called type I high-performance boiler. The boiler type, designed according to the principles of Friedrich Witte, had already been successfully installed on the BR 01.10 Bundesbahn locomotives.

With a value of 1:8.8, the fully welded boiler had a significantly better ratio of radiant to tubular heating surface (old boiler 1:13.54), which was mainly achieved by the built-in combustion chamber. In figures, this is 54 m² less evaporation surface in the high-performance boiler, which was compensated for by an 18 kg/m²h greater heating surface load. This made it possible to achieve the same boiler output with significantly lower fuel consumption.

Visually, the locomotives appeared much more modern and tidier as a result of the conversion to the high-performance boiler, and were given some adjustments to ensure occupational safety. The lines followed a clearer layout. The sandbox at the top of the boiler disappeared. The circulation apron gave way to a wide circulation plate and handle bars were integrated into the wind deflector plates.

Technically, the Knorr surface preheater was replaced by a type 57 mixed preheater system. The 01 217 and 223 locomotives were fitted with roller bearings in the driving and coupling rods on a trial basis, similar to the BR 01.10. Operationally, the locomotives continued to be used together in rosters with old boiler locomotives from traditional railroad depots. Only with the discontinuation of steam locomotive maintenance at the Hof depot in 1973 did the use of both 01 variants by the DB come to an end.

Features:

• Brawa - Steam locomotive 01 232, DB, Ep.III
• Body made of impact-resistant plastic
• Openwork ingot frame made of die-cast zinc
• Spoked wheels made of die-cast zinc
• Filigree metal driving and coupling rods
• Period-appropriate lighting
• Drive in the tender for optimum driving characteristics

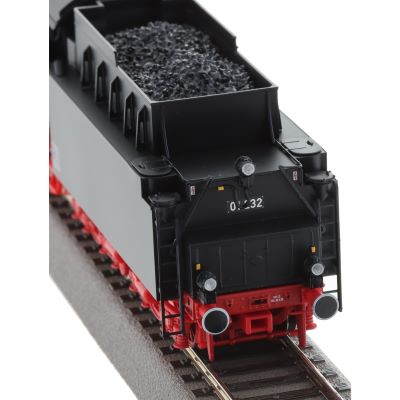

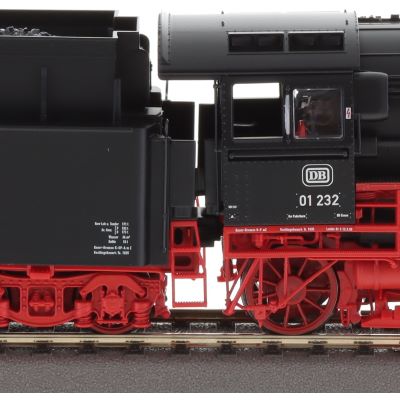

• Close coupler between locomotive and tender
• Standard shaft at the rear guided by a splitter
• Prototypical standing boiler rear wall
• Single axle bearing made of metal
• Scaled wheelbase
• New sound
• Railroad company: DB
• Era: III
• Power system: 2L direct current (DC)
• Interface: PluX22
• Clearance (mm): 275.30
• Light change: white
• Minimum radius (mm): 420
• Coupling system: NEM coupling shaft with KK kinematics

Specs:

• Gauge: H0
• Rail Company: DB
• Era: III
• Color: Black
• Electricity System: DC
• Digital: No
• sound: No
• News: 2023
• Type: Steam loco

Instruction manual / Safety instructions:

• Manual (6.23 MB)

Downloads:

• Booklet (2.53 MB)

Further links:

• Print View

CAUTION: Not suitable for children under 3 years. Danger of swallowing! Age recommendation from 14 years.

Achtung! Maßstabs- und originalgetreue Kleinmodelle sowie Elektrozubehör für erwachsene Sammler. Nicht geeignet für Kinder unter 14 Jahren

Zum Betrieb des vorliegenden Produkts darf als Spannungsquelle nur ein nach VDE 0570-2-7/DIN EN 61558-2-7 gefertigter Spielzeug-Transformator verwendet werden.
