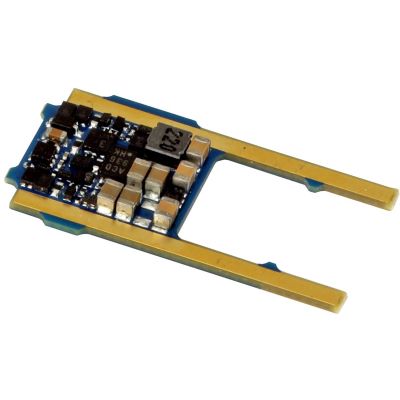

ESU 58731 LokSound 5 micro DCC Direct Kato Japan

The LokSound 5 micro DCC Direct Kato Japan was specially developed for installation in Kato N-gauge vehicles: In many European and Japanese locomotives from this manufacturer, this decoder can be inserted directly underneath the motor instead of the standard analog board. Finally, these models can also be easily retrofitted with a LokSound decoder. The LokSound 5 micro DCC Direct Kato Japan with its dimensions of 27.6mm x 14.1mm x 3mm is a pure DCC decoder and is supplied without loudspeakers.

Features:

• DCC decoder without loudspeaker
• can be used on analog DC tracks
• specially developed for installation in Kato N-gauge vehicles
• it can be inserted directly underneath the motor instead of the standard analog board
• 14 to 128 speed steps are just as natural as 2- and 4-digit addresses
• 32 functions can be triggered
• thanks to RailComPlus®, the decoders register fully automatically with a suitable digital control center
• it masters all DCC programming modes and thanks to RailCom® the CV values can be read out on the main track with suitable command stations
• Auxiliary registers exist for command stations that can only program CVs from 1-255
• the decoder recognizes the Märklin® braking sections as well as ZIMO® HLU / ZACK commands or the Lenz® ABC system
• Braking with DCC brake modules or with DC voltage is also possible
• it also stops with a Selectrix® brake diode
• ABC automatic shuttle train system enables automatic commuting between two stations
• the decoder switches fully automatically "on-the-fly" (usually nothing needs to be set)
• it can play back up to 12 sound channels (each of which can be triggered with up to 16 bit / 31250 kHz and offer hi-fi quality on your system)
• a Class-D audio power amplifier with up to 3W output power drives the speakers, which can have an impedance of between 4 and 32 ohms
• a 128 Mbit sound memory provides sufficient capacity
• the volume of all individual sounds can be adjusted individually
• the super-flexible sound engine without a rigid sequence plan allows the true-to-life simulation of all conceivable rail vehicles
• 3 amplified function outputs are available for lighting at your own discretion
• all important light functions are available and the brightness of each output can be set separately
• the motor control has a variably adjustable PWM clock frequency from 10 kHz to 50 kHz, which ensures super-quiet operation, especially with bell-type armature motors: the typical "humming" is a thing of the past
• Load regulation can also be adapted to difficult cases with up to 10 CVs
• "Autotune" function enables automatic calibration of the decoder to the motor
• the decoder supplies up to 0.75A motor current
• The outputs are protected against overload
• Decoder dimensions (L x W x H): 27.6 x 14.1 x 3.0 mm

Specs:

• Gauge: N
• Type: Accessories
