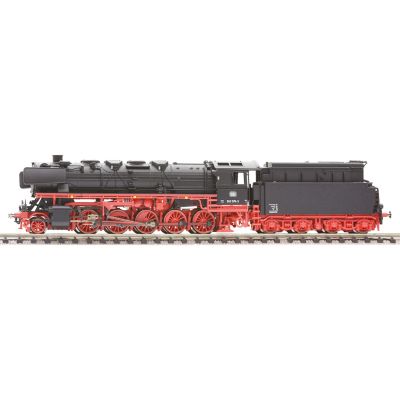

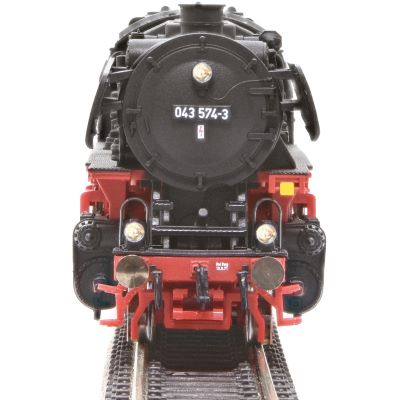

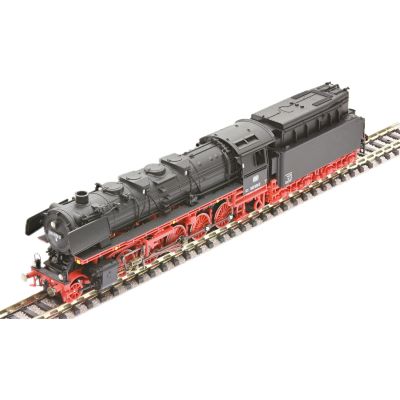

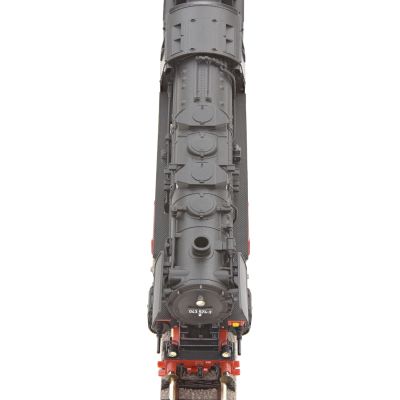

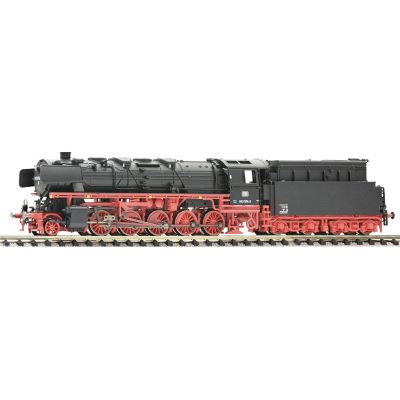

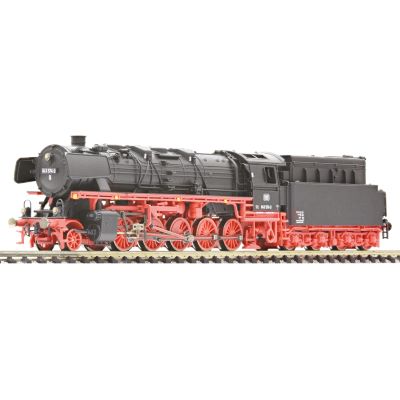

Fleischmann 714474 steam locomotive BR 43 with Öltender, DB Product Details
German Federal Railroad class 043 steam locomotive with oil firing.
The steam locomotives called "Jumbo" at that time were used in almost all of Germany and in many European countries. The maximum speed of the locomotive was 80 km/h (50 mph), while some of these already very powerful locomotives had a further increase in power to 2100 hp (1546 kW) around 1955, when they were converted to oil firing. The DB's oil-fired locomotives carried the class designation 043 from 1968 onwards.
Features:
- With revised cab lighting
- Engine lighting with 3 lamps on each side can be switched digitally
- Circular plate without apron
- Medium driving axles with smaller wheel flanges
- Clear view between boiler and running gear
- Power consumption for locomotive and tender
- Use in heavy freight train service
- With Henning sound
Technical data:
- Number of axles with traction tires: 2
- Number of driven axles: 2
- Interior: Driver's cab
- Coupling: KK linkage between locomotive and tender; NEM 355 shaft with KK kinematics
- Minimum radius: 192mm
- Headlights: 3 headlights, digitally switchable
- Interface: electrical interface for Next18 traction units
- Sound: available
- Lighting with LED: available
- Motor: 3-pole motor
- Digital Decoder: Next18
- Decoder type: MX659N18
- Length over buffers: 141mm
Specs:
- Gauge: N
- Rail Company: DB
- Era: IV
- Electricity System: DC
- Digital: Yes
- sound: Yes
- Type: Steam loco
Instruction manual / Safety instructions:
Downloads:
Further links:
CAUTION: Not suitable for children under 3 years. Danger of swallowing! Age recommendation from 14 years.
