Fleischmann 7560049 N 2er Set electric locomotives als Doppeltraktion Re 10/10, SBB, Ep. V

Fleischmann 7560049 N gauge set of 2 electric locomotives as double traction Re 10/10, SBB, Era V: Powerful team for Gotthard traffic

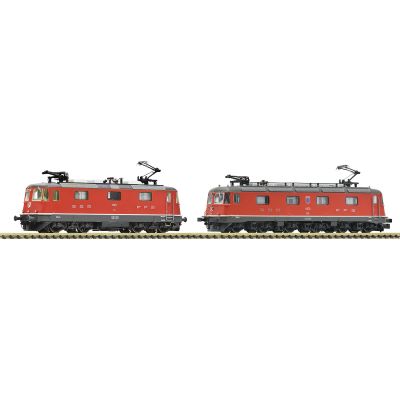

The Fleischmann 7560049 N-gauge set faithfully reproduces the famous Re 10/10 double traction of the Swiss Federal Railways (SBB). With the combination of a Re 6/6 and a Re 4/4 III, this set is ideal for model railroaders who want to realistically represent Era V and the impressive performance of the SBB on the Gotthard line.

The prototype: The Re 10/10 double traction - A legend of the Alps

The designation Re 10/10 is derived from the ten powered axles of the combination of a Re 4/4 II or III and a Re 6/6. This powerful double unit is specially designed for heavy freight trains and is mainly used on the Gotthard route. With a maximum load of 1,400 tons on the train hook, the Re 10/10 can cope with gradients of up to 26 per thousand at a speed of 80 km/h. They are among SBB's most powerful locomotives.

The Re 6/6 locomotive in this set bears the 'Balerna' coat of arms, while the Re 4/4 III is impressive with its detailed design. Both locomotives are painted in the traffic red livery that reflects the aesthetics of modern Era V.

Era V: Progress and modernization

Era V (1990-2006) marks the transition to a modern and efficient railroad landscape. The Re 10/10 double traction unit is a symbol of this era and represents the technological progress and adaptability of SBB to the requirements of international freight traffic.

Technical features and equipment

The set consists of two fully equipped locomotives, both with detailed ventilation grilles and etched parts for the windshield wipers. The lights change in red and white depending on the direction of travel, realized by long-life LEDs. With a total length over buffers (LüP) of 217 mm and a minimum radius of 192 mm, the models are ideal for N-gauge layouts.

Both locomotives are equipped with a Next18 interface, which allows easy retrofitting with digital technology. The NEM coupling shaft with close coupling kinematics ensures a prototypical connection between the two locomotives.

Design and workmanship

The model impresses with its precise printing, the fine ventilation grilles and the high-quality etched parts. The traffic red paintwork is true to the original and harmonizes perfectly with the engravings and details of the locomotives. The locomotives are robust and offer excellent running characteristics.

Care and maintenance

The models are low-maintenance, but should be cleaned regularly to remove dust and dirt. Moving parts and axles can be lightly oiled to ensure smooth operation. Thanks to the robust design and high-quality materials, the models remain functional for a long time, even with intensive use.

Conclusion and purchase recommendation

The Fleischmann 7560049 N gauge set of 2 electric locomotives as double traction Re 10/10 is a must for every model railroader who wants to realistically recreate the power and elegance of the Swiss Federal Railways. With its detailed design, the option of digitalization and excellent running characteristics, this set is the ideal choice for any N-gauge layout.

Features:

• Scale: N gauge
• Era V
• 2-wire direct current system (DC)
• Set consisting of:
  • Re 6/6 11672 with 'Balerna' emblem
  • Re 4/4 III 11361
• Length over buffers: 217 mm
• Minimum radius: 192 mm
• Prototypical traffic red paintwork
• Fine, separately attached ventilation grilles and windshield wipers made of etched parts
• Red-white light change depending on the direction of travel
• Light source: LEDs
• Interface: Next18 for simple digitization
• Coupling shaft according to NEM with close coupling kinematics

Specs:

• Gauge: N
• Rail Company: SBB
• Era: V
• Color: Red
• Electricity System: DC
• Digital: No
• sound: No
• News: 2025
• Type: Electric loco

Further links:

• Print View

CAUTION: Not suitable for children under 3 years. Danger of swallowing! Age recommendation from 14 years.
