Lux Modellbau 9320 H0m Radreinigungsanlage 'Einbaugerät' analogue and digital

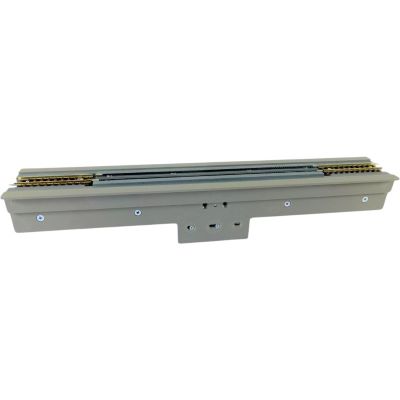

The Lux Modellbau 9320 H0m wheel cleaning unit is a built-in device for H0m model railroads that can be used in both analog and digital systems. This device is specially designed to thoroughly clean the wheel axles of H0m vehicles by effectively removing dirt and debris. This improves power consumption and ensures smooth operation of the trains. The cleaning unit can be seamlessly integrated into existing model railway layouts and helps to optimize the performance and longevity of the vehicles.

Features:

• Manufacturer: LUX-Modellbau
• Gauge: H0m
• Digital decoder: no
• Built-in device: yes
• cleans driven and non-driven wheels of track-bound model railroad vehicles
• removes oil and dirt residues from the wheels
• Power supply 0-12 Volt (DC)
• Power supply digital multi-protocol decoder (Motorola- DCC- Selectrix format)
• Current consumption approx. 100 mA
• Maximum motor voltage at the cleaning drive 12 Volt DC
• Cleaning length desktop and built-in device 183 mm
• Installation dimensions built-in device length 300 mm, width 40 mm, height 50 mm
• Locomotive decoder (art. no. 9311) with high-frequency motor control

Specs:

• Gauge: H0m
• News: 2024
• Type: Accessories
