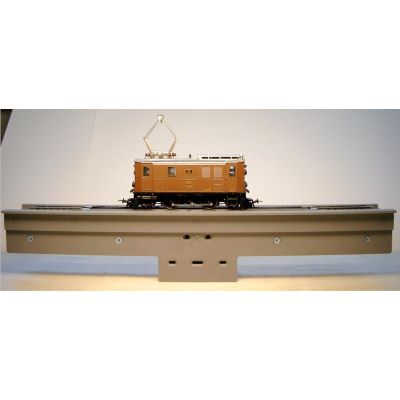

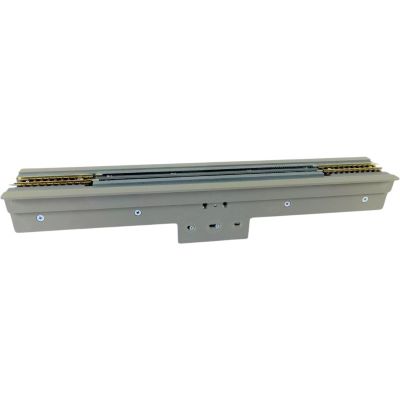

Lux Modellbau 9726 H0m Radreinigungsanlage 'Einbaugerät with Decoder' analogue and digital

The Lux Modellbau 9726 H0m wheel cleaning system is a built-in device that has been specially developed for H0m model railroads and can be used in both analog and digital systems. Equipped with an integrated decoder, this device enables thorough cleaning of the wheel axles of H0m vehicles. It effectively removes dirt and debris from the wheels, improving power consumption and ensuring smooth operation of model railroad vehicles. This built-in device can be seamlessly integrated into existing model railway layouts and helps to optimize the performance and longevity of the vehicles.

Features:

• Manufacturer: LUX-Modellbau
• Gauge: H0m
• Digital decoder: yes
• Built-in device: yes
• cleans driven and non-driven wheels of track-bound model railroad vehicles
• removes oil and dirt residues from the wheels
• Power supply 0-12 Volt (DC)
• Power supply digital multi-protocol decoder (Motorola- DCC- Selectrix format)
• Current consumption approx. 100 mA
• Maximum motor voltage at the cleaning drive 12 Volt DC
• Cleaning length desktop and built-in device 183 mm
• Installation dimensions built-in device length 300 mm, width 40 mm, height 50 mm
• Locomotive decoder (art. no. 9311) with high-frequency motor control

Specs:

• Gauge: H0m
• News: 2024
• Type: Accessories
