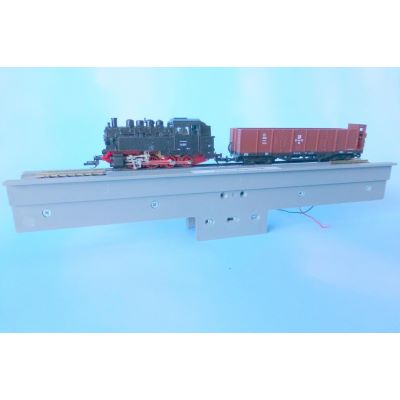

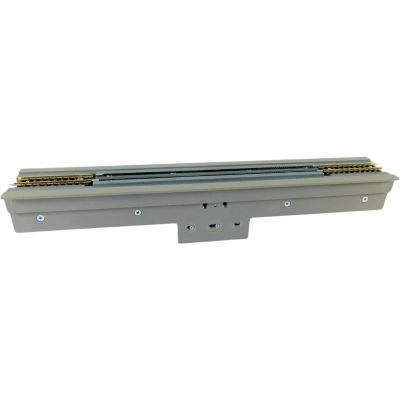

Lux Modellbau 9330 TT wheel cleaning system 'built-in unit' analogue and digital

The Lux Modellbau 9330 TT wheel cleaning unit is a built-in device that has been specially developed for TT model railroads and can be used in both analog and digital systems. This device enables thorough cleaning of the wheel axles of TT vehicles by effectively removing dirt and deposits. This improves power consumption, resulting in more reliable and smoother operation of the model railroad. The cleaning system can be seamlessly integrated into existing layouts and contributes to the long-term performance and longevity of the models.

Features:

• Manufacturer: LUX-Modellbau
• Gauge: TT
• Digital decoder: no
• built-in device: yes
• cleans driven and non-driven wheels of track-bound model railroad vehicles
• removes oil and dirt residues from the wheels
• Power supply 0-12 Volt (DC)
• Power supply digital multi-protocol decoder (Motorola- DCC- Selectrix format)
• Current consumption approx. 100 mA
• Maximum motor voltage at the cleaning drive 12 Volt DC
• Cleaning length desktop and built-in device 183 mm
• Installation dimensions built-in device length 300 mm, width 40 mm, height 50 mm
• Spare polishing rods (4 pieces) (item no. 9756)
• Locomotive decoder (item no. 9311) with high-frequency motor control

Specs:

• Gauge: TT
• News: 2024
• Type: Accessories

Further links:

• Print View

CAUTION: Not suitable for children under 3 years. Danger of swallowing! Age recommendation from 14 years.
