Märklin 37087 H0 steam locomotive BR 86, DR/DDR, Ep. IV, MFX-AC-sound
Delivery time: 1 ‐ 2 business days (Germany)
Check availability in store:
- Store Oschatz: can be picked up immediately
Share with friends:
Märklin 37087 H0 steam locomotive BR 86, DR/DDR, Ep. IV, MFX-AC-sound Product Details
Märklin 37087 H0 Class 86 Steam Locomotive - The Legendary DR Bread Locomotive in a Saxon Version
With the Märklin 37087 class 86 steam locomotive, model railroaders can experience a complete redesign of a classic of the German State Railroad of the GDR. This compact and powerful locomotive, affectionately known as the "bread and butter locomotive", was the backbone of regional rail traffic in Saxony. The model shows the locomotive in perfect condition in 1973 - fully digitized, sonorous and with numerous fine details.
Product Details
- Manufacturer: Märklin
- Product name & model number: 37087 - DR/DDR class 86
- Track gauge: H0
- Era: IV
- Material: Filigree new construction, largely made of metal
- Dimensions: Length over buffers: 16.0 cm
- Drive & motor: Regulated high-performance drive, fully digitally controllable
- Lighting: Warm white LEDs for headlights, red marker lights, cab lighting - can be controlled separately digitally
- Digital interface: mfx+ digital decoder with extensive light and sound functions
- Sound functions: Integrated steam locomotive sound effects and additional sounds
- Coupling: Standard NEM shaft with close coupling kinematics
Design & workmanship

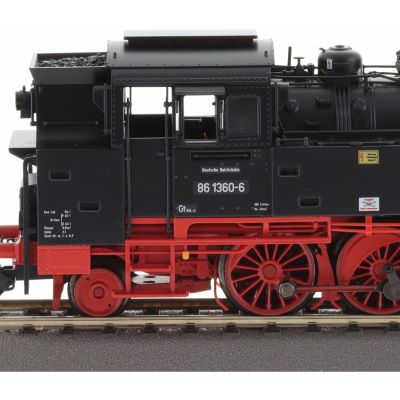

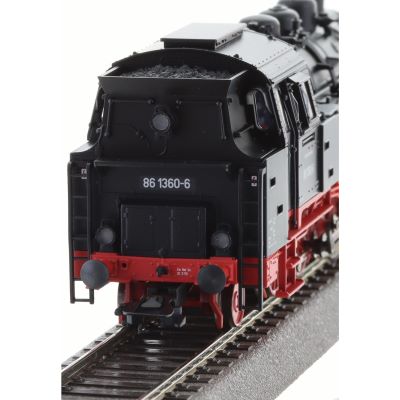

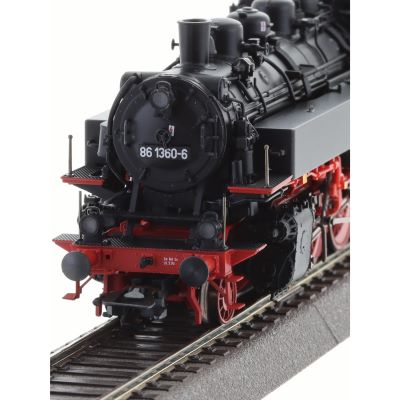

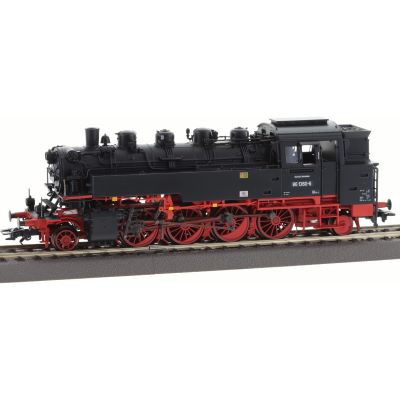

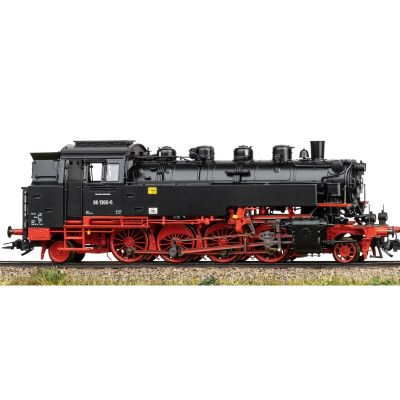

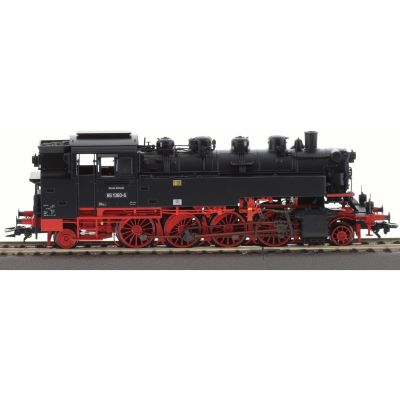

The model stands out with its welded water tanks with rounded front edge, attached grab rails and metal lines. The leading frame has a spoke wheel set, the trailing frame has a disk wheel set - both visually and technically precisely implemented. The deep black paint scheme with the finest printing makes the locomotive a real eye-catcher on any layout.
Technical features & special functions
Equipped with an mfx+ game world decoder, the locomotive offers an impressive digital experience. In addition to driving sounds, steam strokes and bell or whistle signals, the cab and tail light lighting can also be controlled separately. The locomotive is prepared for the installation of a 72270 smoke unit. Its buffer height complies with the NEM standard and it can easily run on radii from 360 mm.
Historical background
The class 86 was developed by the DRG from 1928 for mixed service. After the Second World War, over 160 locomotives remained in the GDR, where they were used on main and branch lines. In Saxony, they took over the express train service between Berlin and Zittau and replaced older tender locomotives. The variant shown here dates from 1973 - a high point of their service in the GDR.
Compatibility & expansion options
Compatible with all H0 AC layouts with a minimum radius of 360 mm. Can be ideally combined with DR cars of Era IV, especially local and express train cars. The 72270 smoke unit can be added for additional effects, and digital control units such as the Märklin Central Station provide optimum control.
What is included
- Märklin 37087 class 86 steam locomotive
- Piston rod protection tubes, brake hoses, heating cables, imitation screw couplers for retrofitting
- Operating instructions
Purchase arguments & target group
A must for DR and Saxony fans! This locomotive impresses with its balanced mixture of attention to detail, digital sophistication and historical relevance. Perfectly suited for ambitious model railroaders who want to equip their Era IV layout with an authentic, powerful engine.
Recommended purchase
Get the Märklin 37087 BR 86 steam locomotive now and experience the bread locomotive of the GDR in its most beautiful form - now available at Modellbahnshop.de!
Features:
- Era IV - German State Railroad (GDR)
- H0 gauge - alternating current
- Completely new design with metal body
- mfx+ decoder with a variety of light and sound functions
- Driver's cab and tail light lighting can be switched digitally
- Prepared for smoke unit 72270
- Minimum passable radius: 360 mm
- Length over buffers: 16.0 cm
- Finest detailing with metal lines and attached grab irons
Specs:
- Gauge: H0
- Rail Company: DR
- Era: IV
- Color: Black
- Electricity System: AC
- Digital: Yes
- sound: Yes
- News: 2024
- Type: Steam loco
Instruction manual / Safety instructions:
Further links:
CAUTION: Not suitable for children under 3 years. Danger of swallowing! Age recommendation from 14 years.
