Märklin 39812 H0 railcar RABe 501 "Giruno", SBB, Ep. VI, AC-MFX-Sound

Märklin 39812 H0 RABe 501 "Giruno" Multiple Unit Train - SBB, Era VI with mfx+ sound and LED interior lighting

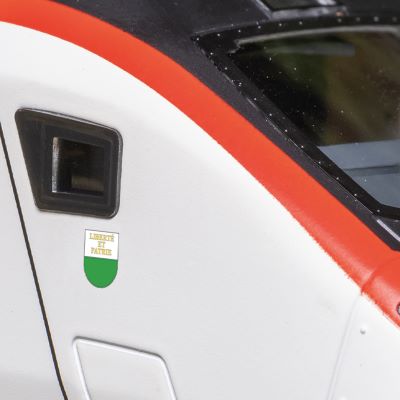

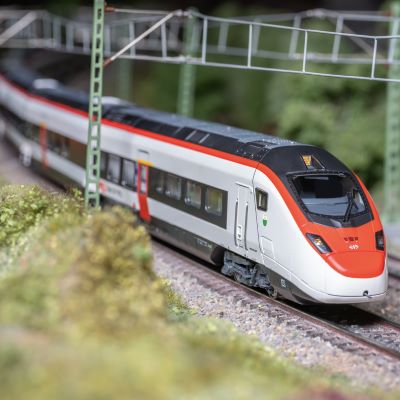

The Märklin 39812 is a scale model of the RABe 501 " Giruno " - the electric high-speed multiple unit of the Swiss Federal Railways (SBB), also known as the EC 250. This model represents the cross-border EuroCity 151 Frankfurt - Milan in operating condition around 2024, with the train number RABe 501 022 and the coat of arms of the Canton of Vaud/Waadt.

The five-car basic set consists of two end cars and three middle cars. The coaches are structured as follows:

• End coach A (Bt1), 2nd class
• Middle coach F (B7), 2nd class with handicapped accessible entrances and pantographs
• Middle coach G (WR6), with restaurant area and central drive
• Middle coach H (A5), 1st class with disabled access and pantograph
• End coach L (At2), 1st class

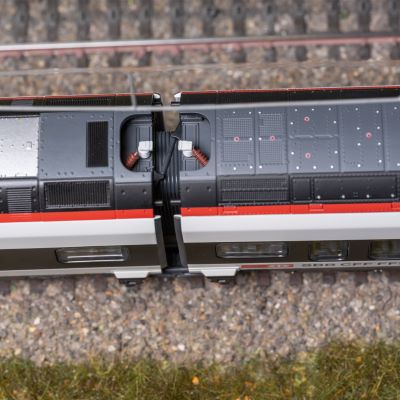

The middle coaches F, G and H are permanently coupled together via Jakobs bogies. The controlled high-performance drive with flywheel mass is centrally located in the restaurant car (G). All four axles of the adjacent Jakobs bogies are driven via cardan shafts. The power supply, which depends on the direction of travel, is provided by the front end car. Traction tires ensure reliable traction on the layout.

The model is equipped with an mfx+ digital decoder and offers extensive light and sound functions. These include a three-light headlights dependent on the direction of travel and two red marker lights that can be controlled conventionally or digitally. It is also possible to switch to the Swiss light change with white marker lights. Other separately switchable light functions are also available.

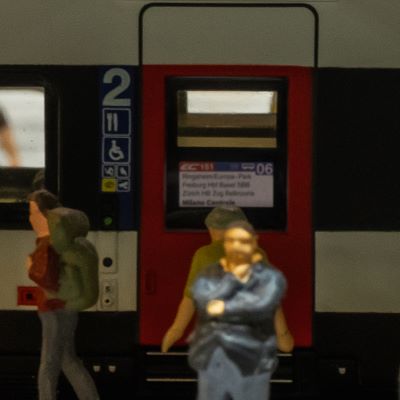

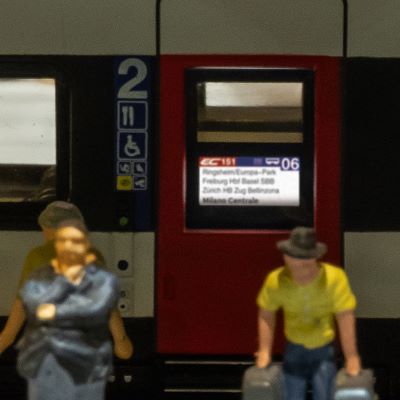

The LED interior lighting is fitted as standard in all carriages and is powered by the electrical connection of the entire train. The driver's cab and driver's desk lighting can also be switched digitally. A visual highlight are the illuminated train destination displays in the doors, which go out automatically when the train approaches.

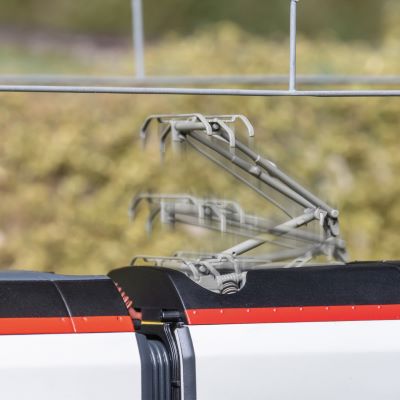

The pantographs on the center cars F and H can be raised and lowered digitally. The train is completely true to scale and has many separately applied details. The bogies have link guides that ensure realistic movement. The model is suitable for a minimum radius of 360 mm. The total length of the basic set is approx. 112 cm.

The RABe 501 "Giruno" is ideal for model railroaders who want to realistically represent modern, cross-border trains on their layout. With its excellent technology, numerous lighting functions, high-quality workmanship and digital control, this model offers everything that SBB and EC fans could wish for.

Features:

• Manufacturer: Märklin
• Product type: RABe 501 "Giruno" high-speed multiple unit
• Railroad company: SBB (Swiss Federal Railways)
• Era: VI
• Train number: RABe 501 022 with the coat of arms of the canton of Vaud
• Operating condition: around 2024
• Cross-border operation: Frankfurt - Freiburg - Basel - Zurich - Milano Centrale
• Gauge: H0
• Length over buffers: approx. 112 cm
• 5-part basic set with Jakobs bogies
• Central drive in the restaurant car (G)
• All 4 axles on the Jakobs bogies driven via cardan shaft
• Traction tires for improved traction
• Digital decoder mfx+ with extensive light and sound functions
• LED interior lighting as standard
• Continuous power supply over the entire train
• Driver's cab and driver's desk lighting can be switched digitally
• Illuminated train destination displays in the doors (go out on departure)
• Direction-dependent light changes (incl. Swiss light change)
• Separately switchable high beam, headlights, tail lights
• Pantographs on carriages F and H can be raised and lowered digitally
• Catenary guide in Jakobs bogies
• Minimum radius: 360 mm

Specs:

• Gauge: H0
• Rail Company: SBB
• Era: VI
• Color: Multi-Colored
• Electricity System: AC
• Analogue / Digital: Digital
• sound: Yes
• News: 2025
• Type: Railcar
