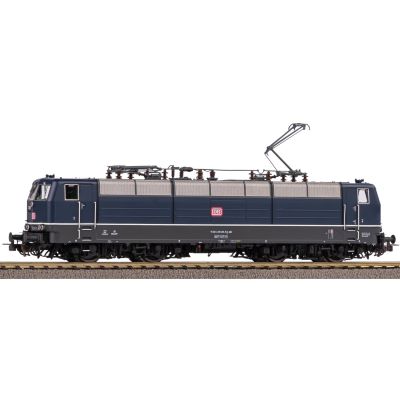

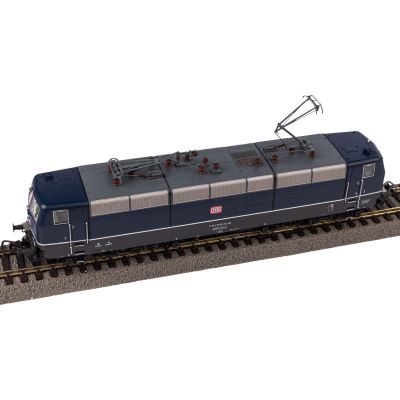

Piko 51944 electric locomotive BR 181.2 DB AG VI

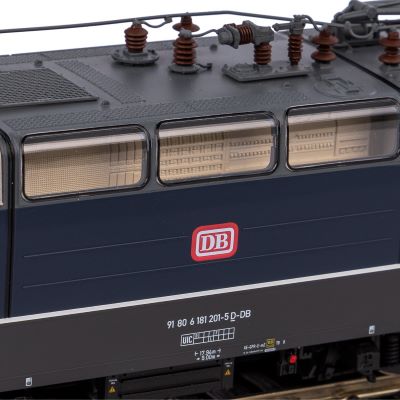

Novelty 2023: Variant of the class 181.2 in the DB AG version in Era VI. The PIKO model of this important multi-system locomotive series shows all relevant details of its prototype and convinces with the finest painting and printing, extra applied front handles and door handle bars, sharply engraved bogie covers, fine insulators and fine-linked pantographs. The lighting is provided by LEDs. The standard cab and engine room lights are digitally switchable with PluX22 decoders, as are the direction-dependent tail lights. A powerful five-pole motor with flywheel masses, which drives all four axles, provides excellent driving characteristics. The PIKO model has two traction tires and a heavy zinc die-cast frame for large tractive forces. The PIKO 181.2 is prepared for an uncomplicated retrofit with sound and the largest possible speaker.

Features:

• Power system: Direct current
• Railroad management: DB AG
• Era: VI
• Dimension designation: LüP / length over buffers
• Dimension [mm]: 206
• Minimum radius [mm]: 358
• Digital interface: NEM 658 PluX22
• (Interior) lighting: Digitally switchable cab lighting (with PluX22 decoder)
• Number of traction tires: 2
• Coupler: NEM shaft + close coupler linkage
• Sound: PIKO sound decoder retrofittable 56537
• Light change: Direction-dependent light change white / red
• Age recommendation: from 14 years

Specs:

• Gauge: H0
• Rail Company: DB
• Era: VI
• Color: Blue
• Electricity System: DC
• Digital: No
• sound: No
• News: 2023
• Type: Electric loco

Instruction manual / Safety instructions:

• Manual (767.15 KB)

Downloads:

• Spare Parts (9.44 MB)

Further links:

• Print View

CAUTION: Not suitable for children under 3 years. Danger of swallowing! Age recommendation from 14 years.
