NEW Piko 55276 Decoder für Servo-Antriebe

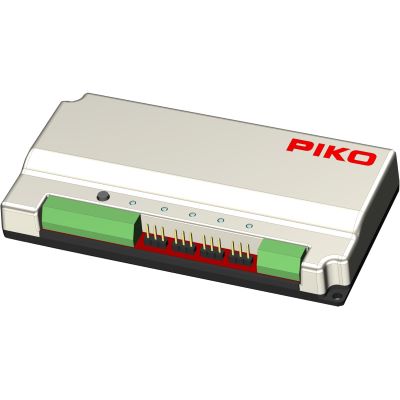

Piko 55276 Decoder for servo drives - Precise control for demanding model railroaders

With the Piko 55276 decoder for servo drives, PIKO offers a versatile and convenient solution for controlling servo motors on your model railroad layout. The decoder is suitable for use with DCC and Märklin® digital systems and replaces the previous item 55274. Ideal for points, gates or other moving elements - for maximum precision and flexibility.

Magnetic article functionality - individually programmable

The decoder can be controlled like a conventional magnetic article decoder. A separate switching address can be freely selected for each servo, allowing the decoder to be individually adapted to your system structure. It is conveniently controlled via soft keys on the digital device.

Fine adjustment for realistic movements

The holding positions and rotation speeds of the servos can be set separately so that realistic motion sequences can be reproduced exactly. This makes the decoder ideal for tailor-made applications such as barriers, shape signals or slow-moving points.

Flexible power supply - digital or analog

Power can be supplied either directly via the track or via a separate power supply unit. For analog control, the decoder is also compatible with the control panel #55262 - a simple solution for users without digital control.

Compatibility and simple programming

The Piko 55276 decoder is fully DCC compatible and can be set up via the digital system using CV programming. This enables quick and flexible integration into existing layouts with digital control.

Now in the model railway store - Decoder for precise servo control

Experience the advantages of sensitive drive control with the Piko 55276 servo decoder - ideal for all gauges and digital systems. Now available for modern and realistic model railroad design!

Features:

• Gauge neutral
• Function: Decoder for controlling servo drives
• Can be switched like a magnetic article decoder
• For DCC and Märklin® digital systems
• Freely selectable switching addresses for each servo
• Adjustable stop positions and rotation speed
• Power supply via track or separate power supply unit
• CV programming or analog via control panel #55262
• Replaces article 55274

Specs:

• Gauge: All
• Type: Decoder
