ESU 51832 SwitchPilot 3 Servo 8-fach Servodecoder

ESU 51832 SwitchPilot 3 Servo 8-Channel Servo Decoder – Precision Servo Control for Model Railway Layouts

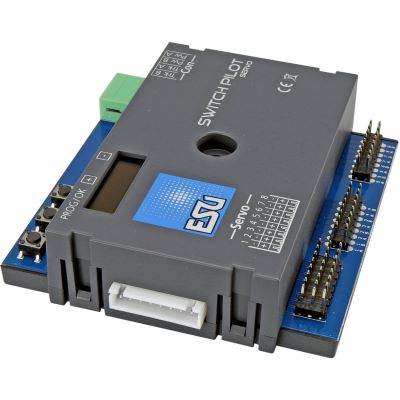

The ESU SwitchPilot 3 Servo (51832) is an advanced 8-channel servo decoder optimized for stationary use on model railway layouts, allowing precise control over up to eight RC servos. Designed to simplify configuration, the SwitchPilot 3 Servo features a 4-line illuminated OLED display and intuitive three-button control, making setup and adjustment straightforward and efficient. Ideal for controlling switches, signals, and other slow-motion applications, this multiprotocol decoder brings reliability and versatility to any layout.

Flexible Operation with Multiprotocol Compatibility

The SwitchPilot 3 Servo is compatible with both Märklin Motorola systems (e.g., 6021, Central Station, Mobile Station) and DCC control systems, making it a flexible choice for various digital setups. Configuration can be performed on both the main track and programming track, and the decoder supports RailCom for reading CVs. The device can be powered either directly from the digital system or via an external DC or AC power source, providing options for different layout requirements.

Innovative Control Modes: Digital Mode and Proportional Mode

The SwitchPilot 3 Servo offers two control modes for precise servo operation:

• Digital Mode: In this mode, each servo can move between two fixed positions, “A” and “B,” based on commands from the control panel. The end positions and the speed of movement can be individually configured, making this mode ideal for switches, signals, or other elements that remain in set positions.
• Proportional Mode: This unique mode allows the servo to stop at any position between the defined endpoints “A” and “B.” The servo moves only while a control command is sent; releasing the button stops the movement, making it perfect for applications requiring adjustable positioning.

This versatile control allows for a wide range of applications, from simple switch movements to more complex, customizable servo-driven tasks.

Enhanced Stability and Anti-Jitter Features

To prevent servo “twitching” on power-up, the SwitchPilot 3 Servo includes a power-on pulse suppression feature, which reduces or eliminates unwanted servo movement when power is applied. Additionally, the servo power supply can be temporarily interrupted to prevent unwanted buzzing from certain low-cost servos, enhancing the overall stability and reliability of the system.

Standalone Operation with Optional Analog Control

The SwitchPilot 3 Servo is capable of standalone operation without a digital central control. Up to 16 push buttons can be connected directly to control servos, making it an excellent option for users who prefer analog control or want to operate servos independently of a digital command station. This flexibility allows for diverse and creative control setups on your layout.

User-Friendly OLED Display and Configuration Options

The built-in OLED display provides clear feedback and easy navigation through configuration settings. With POM (Programming on Main) capabilities, adjustments can be made directly on the main track or programming track using a DCC central controller. The display, combined with the intuitive control buttons, ensures efficient setup and operation, even for users with minimal programming experience.

Features:

• Model: ESU SwitchPilot 3 Servo
• 8-channel servo decoder for RC servos
• Compatible with DCC and Märklin Motorola (MM) systems
• 4-line OLED display for easy configuration
• RailCom-compatible for CV readout
• Operable without a digital central controller, suitable for analog operation
• Programmable on main track (POM) or programming track
• Overload protection on outputs
• Supports both “Digital Mode” (fixed positions) and “Proportional Mode” (variable positions)

Technical Specifications:

• Dimensions: Compact and suitable for stationary installation
• Power Supply: External DC/AC power source or digital system
• Connectivity: Direct connection for up to 8 RC servos and 16 push buttons (optional)
• Updateable firmware for future functionality enhancements

Specs:

• Gauge: All
• Type: Accessories

Instruction manual / Safety instructions:

• Manual (2.5 MB)

Further links:

• Print View

CAUTION: Not suitable for children under 3 years. Danger of swallowing! Age recommendation from 14 years.
