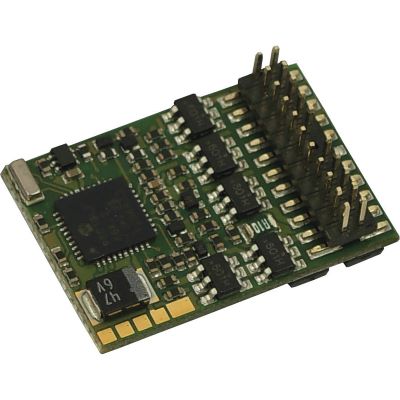

Roco 10896 Rückmeldefähiger PluX22-Decoder

Would you like to easily digitize your H0 locomotive and use RailCom at the same time?

With the Roco 10896 PluX22 decoder with feedback capability, you can equip a compatible model train locomotive with modern digital technology. This compact locomotive decoder combines precise motor control with numerous configuration options and supports not only DCC digital operation but also other digital and analog formats.

Thanks to the standardized 22-pin PluX22 connector, the decoder can be installed in vehicles equipped for it. Once installed, the locomotive address, running characteristics, and other operating parameters can be conveniently programmed without having to open the locomotive again for every change.

Technical Specifications of the Roco 10896 PluX22 Decoder

Compact design and secure PluX22 connection

Measuring just 22 x 15 x 3.5 mm, the Roco locomotive decoder takes up very little space inside the locomotive. The 22-pin plug connection allows for a clean connection to a compatible PluX22 interface. There is no need for time-consuming direct wiring of the individual decoder terminals on locomotives that have been properly prepared.

This makes the decoder suitable both for digitizing analog-ready models and for replacing an existing PluX22 decoder. Before installation, check the existing interface, the available installation space, and the motor’s current draw.

Multi-protocol operation for flexible model railroads

The Roco 10896 supports operation with DCC, RailCom, and Motorola/MM. In addition, the decoder can also be used in DC analog mode as well as in AC analog mode. This multiprotocol capability makes it a versatile solution for various model railroad control systems and operating concepts.

Programmable locomotive addresses and customizable operating parameters allow for individual adaptation to the specific vehicle. Acceleration, braking behavior, and other decoder settings can be configured to suit the locomotive and the desired operating mode.

Motor Control and Braking Distance Support

The integrated motor control ensures controlled and as smooth as possible running characteristics. This allows the locomotive to be controlled precisely even at low speeds. Support for suitable braking distances enables additional automatic functions on digitally controlled model railroad layouts.

An integrated overcurrent protection feature safeguards the decoder in the event of excessive electrical load. However, the motor power and all connected loads must still be operated within the permissible load limits.

RailCom Feedback for Modern Digital Operation

Thanks to the integrated RailCom function, the decoder can transmit information to a compatible digital command station or to suitable feedback modules. Thus, the feedback-capable PluX22 decoder fulfills an important requirement for convenient locomotive identification and modern control sequences on appropriately equipped layouts.

The decoder is also updateable. This allows its software to be updated using the procedures supported by the manufacturer.

Eight usable outputs for lighting and auxiliary functions

Six function outputs are available for controlling lighting and additional functions. Depending on the vehicle’s circuit board, these can be used to control, for example, headlights, taillights, cab lighting, or other switchable functions.

In addition, the Roco 10896 features two logic-level outputs. Depending on the vehicle’s equipment and configuration, these can be used for additional functions, servo control lines, or a SUSI connection. A sound module or speaker is not included with the decoder.

Compatibility and Expansion Options

The decoder is designed for H0 locomotives with a suitable PluX22 interface. It can be used with compatible DCC and Motorola digital control units, as well as in supported analog operation. For RailCom feedback, a RailCom-capable control center or corresponding feedback components are also required.

Which lighting, servo, or additional functions can actually be used depends on the electrical equipment and circuit board of the respective locomotive. Therefore, the interface pinout and the manufacturer’s instructions for the locomotive should be checked before installation.

Scope of Delivery

The package includes one Roco 10896 PluX22 decoder with feedback capability. A locomotive, digital command station, speaker, and other connection or feedback components are not included.

Who is the Roco 10896 decoder suitable for?

The PluX22 locomotive decoder is an attractive option for model railroaders who want to digitize a suitably prepared H0 locomotive or replace an existing decoder. Users with a multi-protocol layout will particularly benefit from the various supported operating modes.

The decoder also offers numerous possibilities for ambitious digital model railroaders: RailCom feedback, programmable operating parameters, braking distance support, and additional logic-level outputs create a flexible foundation for varied and automated model railroad operation.

Get the right digital technology for your locomotive now

Equip your compatible H0 locomotive with modern control and feedback technology. The Roco 10896 PluX22 decoder combines multi-protocol operation, RailCom, motor control, and versatile function outputs in a compact design. A powerful addition to digitally controlled model railroad layouts—choose it now for your next digitization project!

RailCom Feedback

Enables the transmission of vehicle information to compatible digital and feedback systems.

Multiprotocol Capable

Supports DCC, Motorola/MM, as well as DC and AC analog operation.

PluX22 Interface

The 22-pin plug connection allows for installation in H0 locomotives equipped with the appropriate receptacle.

Six function outputs

Offers versatile options for controlling lighting and auxiliary functions.

Two logic-level outputs

Suitable for additional functions, servo control lines, or a SUSI connection.

Programmable operating parameters

Locomotive address, driving behavior, and other settings can be conveniently adjusted via the digital control system.

Motor control and braking distances

Supports controlled driving behavior and the use of appropriate digital braking sections.

Updatable and protected

The decoder is updateable and features built-in overcurrent protection.

Specs:

• Gauge: H0
• Type: Accessories
