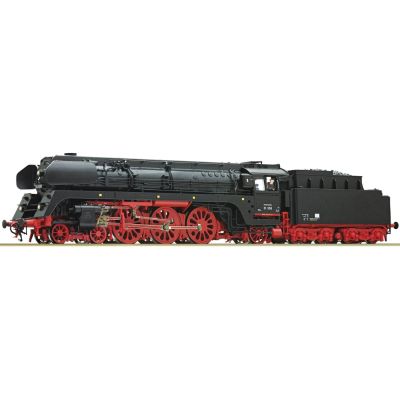

Roco 71268 steam locomotive 01 508, DR, Ep. III (incl. sound)

Roco 71268 Steam locomotive 01 508, DR, Ep. III: A masterpiece of reconstruction and technology

The Roco 71268 steam locomotive 01 508 is an impressive replica of the legendary express steam locomotive of the Deutsche Reichsbahn (DR) from Era III. This model not only impresses with its technical sophistication, but also with its detailed design. With a length over buffers of 281 mm and a variety of authentic functions, such as an integrated sound decoder, this locomotive is a real highlight on any H0 model railway layout. The Reko-01 is one of the most powerful steam locomotives of the post-war period and was known for its outstanding performance and reliability.

Prototype of the 01 508: Reconstruction for top performance

The 01 series was one of the best-known express steam locomotives of the Deutsche Reichsbahn. However, after the Second World War, it became apparent that many class 01 locomotives were in poor condition, which impaired their availability for express train services. To counteract this, the Deutsche Reichsbahn decided to undertake extensive reconstruction measures. The 01 508 is a perfect example of these modernizations.

During the reconstruction, the locomotive's performance was increased by installing a welded boiler with an additional safety valve, among other things. All boiler superstructures were covered and the driver's cab was given a more modern design. The striking Witte wind deflectors, which were beveled at the front of the locomotive, underline the aerodynamic improvement. Another special feature are the cast steel Boxpok wheels, which were installed due to broken spokes on the original coupled wheelsets. These modifications made the Reko-01 one of the most powerful steam locomotives of the post-war period.

High-quality model from Roco: Precision and details at the highest level

The Roco 71268 steam locomotive 01 508 is an absolute top model that impresses with its high-quality workmanship and attention to detail. The locomotive is equipped with a variety of functions that make it interesting for both collectors and passionate model railroaders. The model is factory-fitted with a sound decoder that realistically reproduces the typical sound of a steam locomotive. The digital decoder enables the control of numerous functions such as the direction-dependent 3 headlights and an optional retrofittable smoke generator (Seuthe No. 11).

The locomotive is driven by five axles, two of which are equipped with traction tires to ensure optimum tractive effort. The fine metal wheelsets and the detailed reproduction of the coal firing system make the model an eye-catcher on any layout. The Boxpok wheels, which were installed during the reconstruction, are also authentically reproduced and contribute to the robustness and stability of the locomotive.

Technical highlights of the Roco 01 508

The Roco 71268 01 508 is not only a visual treat, but also impresses with its technical features. The model is designed for direct current operation (DC) and has an NEM 652 interface via which a digital decoder can be connected. The locomotive is equipped with a type MS450R NEM 652 digital decoder, which enables precise control. The built-in sound decoder provides a realistic soundscape that makes the driving experience even more authentic.

In addition to the sound functions, the locomotive has a headlight at both ends depending on the direction of travel. The tender coupling is equipped with an NEM 362 shaft and KK kinematics, which enables flexible and safe connection with other wagons. The minimum radius for use on the model railway layout is 419 mm, so that the model can also be used on demanding routes.

The perfect addition to any H0 model railway layout

With the Roco 71268 steam locomotive 01 508, you can bring a piece of railroad history to your model railway layout. Thanks to the high level of detail and the extensive functions, such as the digitally switchable sound and the retrofittable smoke generator, the locomotive can be perfectly staged on any layout. The robust construction and fine details make it a must-have for every model train enthusiast who wants to add a post-war masterpiece to their collection.

Whether on an Era III layout or as part of a historic express train - the Roco 01 508 is a highlight that impresses with both its appearance and its technology. The model offers numerous possibilities for realistic train compositions and brings a special atmosphere to your layout thanks to the high-quality sound functions.

Conclusion: A must for lovers of historic steam locomotives

The Roco 71268 steam locomotive 01 508 is a perfect choice for model railroaders who value historical authenticity and technical sophistication. The excellent workmanship, the detailed reproduction and the extensive technical functions make this model a worthwhile investment. With the option of retrofitting a smoke generator and using the sound functions, the 01 508 is an experience for all the senses. This locomotive is a highlight of any H0 layout and will delight both beginners and experienced model railroaders.

Features:

• Direct current (DC)
• Gauge size: H0
• Era: III
• Clearance: 281 mm
• Minimum radius: 419 mm
• Coupling: NEM 362 shaft with KK kinematics on the tender
• Number of powered axles: 5
• Number of axles with traction tires: 2
• Interface: Electric interface for traction units according to NEM 652 with plug-in device
• Digital decoder: NEM 652
• Decoder type: MS450R
• Sound: Yes
• Headlights: 3 headlights at both ends of the car, changing with the direction of travel
• Smoke generator: Can be retrofitted (digital: Seuthe No. 11)
• Version with box-type pok wheels and a rotating apron
• With coal firing
• Fine metal wheelsets
• Home Rbd Erfurt, Bw Erfurt

Specs:

• Gauge: H0
• Rail Company: DR
• Era: III
• Color: Black
• Electricity System: DC
• Digital: Yes
• sound: Yes
• News: 2023
• Type: Steam loco

Instruction manual / Safety instructions:

• Manual (1.25 MB)
• Manual (624.2 KB)

Downloads:

• Spare Parts (1.69 MB)

Further links:

• Print View

CAUTION: Not suitable for children under 3 years. Danger of swallowing! Age recommendation from 14 years.
