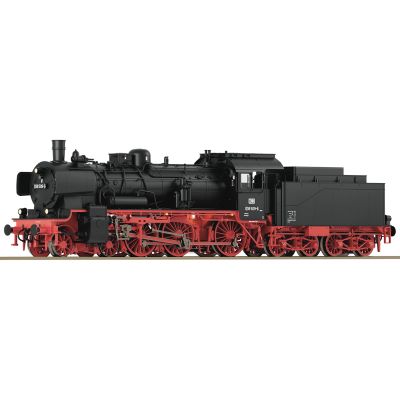

Roco 71380 steam locomotive 038 509-6, DB, Ep. IV (incl. sound)

Roco 71380 Steam locomotive 038 509-6, DB, Ep. IV: A masterpiece for model railroad enthusiasts

The Roco 71380 steam locomotive 038 509-6 is an exceptional edition model that brings the fascination of the historic steam locomotive to the world of model railroading. This locomotive, which comes from Era IV of the German Federal Railroad, impresses with its detailed reproduction and modern technical equipment, including a factory-installed sound decoder. With a length over buffers (LüP) of 214 mm, the locomotive fits seamlessly into any H0 model railway layout and provides an incomparable driving experience. Thanks to the high-quality workmanship and the numerous functions, such as the dynamic steam function and the cab lighting, this model is a real highlight on the layout.

The prototype: The class 038 steam locomotive

The class 038 of the German Federal Railroad was a familiar sight on the German branch lines for a long time. These locomotives, which originally belonged to the 38.10-40 class, were indispensable for local traffic and mainly hauled passenger trains. Characteristic of these locomotives were their riveted tenders and the Witte wind deflectors, which are also faithfully reproduced in the Roco model. It was only with the increasing modernization and the use of diesel and electric locomotives that the 038 series was gradually replaced. The model of the 038 509-6 is an example of the steam locomotives that were in use until the 1970s and thus represent a piece of railroad history.

Technical highlights of the Roco 71380 steam locomotive 038 509-6

The Roco 71380 offers a variety of technical features that make the model particularly attractive for model railroaders. In addition to the visual attention to detail, the locomotive impresses with its modern technology, which makes it a real experience on the layout:

• H0 gauge: The model is on a scale of 1:87 and fits ideally on any H0 model railroad layout.
• Era IV: The steam locomotive is historically classified in Era IV of the German Federal Railroad, which makes it particularly interesting for collectors of this era.
• Length over buffers (LüP): 214 mm: With a length of 214 mm, the locomotive is an impressive model that comes into its own in any train composition.
• Sound: The model is factory-equipped with a PluX22 sound decoder (MS450P22), which reproduces realistic steam locomotive sounds and provides an authentic sound experience.
• Minimum radius: The locomotive can be operated on tracks with a minimum radius of 358 mm, which makes it flexible for use on many layouts.
• Driven axles: Two axles of the locomotive are driven, two others are equipped with traction tires for increased tractive power.
• Digital operation: The locomotive has a PluX22 electrical interface, which enables it to be used in digital mode. The cab and engine lighting as well as the dynamic steam can also be controlled in digital mode.

Detailed design and innovative technology

The model of the Roco 71380 steam locomotive 038 509-6 impresses not only with its technical equipment, but also with its fine and detailed design. The locomotive is equipped with numerous separately applied parts, such as the Witte wind deflectors and the characteristic riveted tender. The wheels of the locomotive are fitted with fine spokes that realistically reproduce the historical model.

Particularly noteworthy is the dynamic steam function, which ensures realistic steam is emitted from the chimney and makes the driving experience on the layout even more authentic. The 3 headlights, which change automatically depending on the direction of travel, also contribute to the realistic representation of the locomotive.

• Finely detailed model: With many separately applied plug-in parts and precise workmanship, the locomotive offers a high level of detail.
• Wheels with fine spokes: The locomotive's spoked wheels are reproduced in detail and give the model a true-to-original look.
• Rivet tender and Witte wind deflectors: The characteristic features of the 038 series are exactly reproduced in the model.

Why the Roco 71380 steam locomotive is a highlight for your model railway layout

The Roco 71380 steam locomotive 038 509-6 combines historical authenticity with the latest model railway technology. With its detailed design, dynamic steam function and extensive sound and lighting options, this locomotive offers an incomparable driving experience. Thanks to the PluX22 interface and the digital control options, the locomotive is particularly versatile and can be seamlessly integrated into modern model railroad layouts.

Conclusion: A must for steam locomotive enthusiasts and model railroaders

With the Roco 71380 steam locomotive 038 509-6, you get a detailed and technically state-of-the-art model on your layout. The locomotive not only offers a realistic driving experience thanks to the dynamic steam function and the authentic sound, but also impresses with its high-quality workmanship and the loving reproduction of historical details. A real highlight for anyone who values quality and historical accuracy.

Features:

• Direct current (DC)
• Track size: H0
• Era: IV
• Length over buffers: 214 mm
• Minimum radius: 358 mm
• Coupling: In-house coupling and KK kinematics
• Number of powered axles: 2
• Number of axles with traction tires: 2
• Interface: Electric interface for PluX22 traction units
• Digital decoder: PluX22 (MS450P22)
• Sound: Yes
• Headlights: 3 headlights at both ends of the car, changing with the direction of travel
• Completely new construction
• Finely detailed model with many separately applied plug-in parts
• Wheels with fine spokes
• Version with riveted tender and Witte wind deflectors
• In digital operation with switchable cab and engine lighting
• With newly developed dynamic steam for an even more authentic steam output from the chimney

Specs:

• Gauge: H0
• Rail Company: DB
• Era: IV
• Color: Black
• Electricity System: DC
• Digital: Yes
• sound: Yes
• News: 2023
• Type: Steam loco

Instruction manual / Safety instructions:

• Manual (10.98 MB)

Further links:

• Print View

CAUTION: Not suitable for children under 3 years. Danger of swallowing! Age recommendation from 14 years.
