Roco 78341 steam locomotive BR 012, DB, Ep. IV (incl. sound) AC current/AC

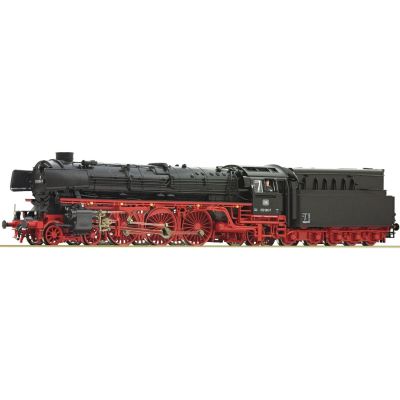

Roco 78341 H0 Class 012 steam locomotive, DB, Era IV, AC sound: Express locomotive with oil tender and new boiler

With the Roco 78341 class 012 steam locomotive, Roco brings a technically and visually high-quality model realization of one of the most powerful German express steam locomotives to your H0 layout. The locomotive is based on the famous class 01.10, which was extensively modernized after the Second World War and equipped with new boilers and oil tenders. A total of 34 locomotives were converted to oil main firing and formed the backbone of the high-quality express train service of the German Federal Railroad in Era IV.

The model is presented in an extremely finely detailed design with new boilers, deep sand boxes and filigree metal wheel sets. The realization in H0 scale perfectly reflects the massive elegance of the 012. The locomotive is equipped with a factory-installed digital sound decoder (MX645R) and offers a full three-light headlamp at both ends of the vehicle that changes depending on the direction of travel. A smoke generator (Seuthe No. 11) can be retrofitted and switched digitally. The model also comes with an etched sign set for individual design.

The locomotive is driven by six axles, three of which have traction tires for maximum tractive power. A flywheel mass ensures excellent running characteristics. The electrical interface in accordance with NEM 652 is already equipped with the sound decoder. Coupling is via an NEM 362 shaft (without KK kinematics). With a minimum radius of 419 mm and a length over buffers of 277 mm, the model is ideal for spacious layouts.

Whether as the main actor in express train service or as a technical highlight on the layout - the Roco 78341 BR 012 is an impressive appearance for all fans of the DB steam locomotive era.

Now available at Modellbahnshop.de - get this highlight from Era IV and bring the express train power of the 1970s to your layout!

Features:

• Model: Steam locomotive class 012 (former 01.10) with a new boiler and oil tender
• Manufacturer: Roco
• Track gauge: H0
• Era: IV
• Railroad company: German Federal Railroad (DB)
• Power system: Alternating current (AC)
• Digital decoder: NEM 652, factory-fitted with MX645R sound decoder
• Sound: Yes
• Smoke generator can be retrofitted (Seuthe No. 11)
• Directional three-light headlights (LED)
• Finely detailed design with low-lying sand boxes
• Fine metal wheel sets
• Enclosed etched sign set
• Powered axles: 6, 3 of them with traction tires
• Flywheel mass for smooth running
• Coupling: NEM 362 without KK kinematics
• Length over buffers: 277 mm
• Minimum radius: 419 mm

Specs:

• Gauge: H0
• Rail Company: DB
• Era: IV
• Color: Black
• Electricity System: AC
• Digital: Yes
• sound: Yes
• News: 2022
• Type: Steam loco

Instruction manual / Safety instructions:

• Manual (996.18 KB)

Downloads:

• Spare Parts (2.33 MB)

Further links:

• Print View

CAUTION: Not suitable for children under 3 years. Danger of swallowing! Age recommendation from 14 years.
