Schönwitz 50167 Schrumpfschlauch 1,2 mm auf 0,6 mm, 1 Meter (grün)
Delivery time: 1 ‐ 2 business days (Germany)
Check availability in store:
- Store Oschatz: can be picked up immediately
Share with friends:
Schönwitz 50167 Schrumpfschlauch 1,2 mm auf 0,6 mm, 1 Meter (grün) Product Details
The Schönwitz 50167 heat shrink tubing has a diameter of 1.2 mm before shrinking and reduces to 0.6 mm after shrinking. Available in green and with a length of 1 meter, this heat shrink tubing is ideal for insulating and protecting small cables and wires. The flexible material shrinks to the desired size when heated, ensuring a precise and secure connection. Particularly useful for applications in model making, electronics or fine wiring work where clear color coding is an advantage.
The heat-shrink tubing is intended for professional use due to its very good chemical, mechanical and electrical properties. It guarantees perfect electrical insulation and offers protection against corrosion and mechanical stress.

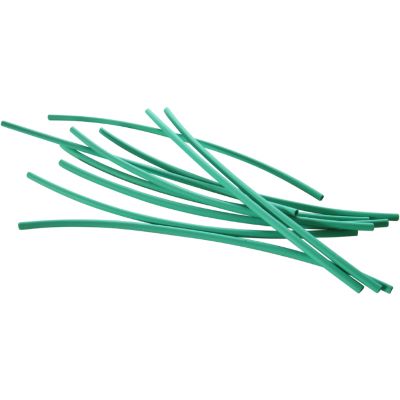

Supplied with 1 meter of heat-shrink tubing, pre-cut into 10 pieces of 10 cm each.
Features:
- Material: radiation cross-linked polyolefin
- Color: green
- Diameter before shrinking: 1.2 mm
- Diameter after shrinking: 0.6 mm
- Shrink ratio: 2:1
- Wall thickness after shrinkage: 0.40 mm
- Shrink temperature: '110 °C
- Longitudinal shrinkage: max. 10 %
- Application temperature: -55 °C to +135 °C
- Tensile strength: 15.0 MPa min (ISO 37)
- Flammability: self-extinguishing
- Dielectric strength: =24 kV / mm
- Tested according to: UL224, CSA 400-U-9
- High resistance to: acids, alkalis, cleaning fluids, fuels, oils, salt water, fungal growth and rotting
Further links:
CAUTION: Not suitable for children under 3 years. Danger of swallowing! Age recommendation from 14 years.
