Schönwitz 50169 Schrumpfschlauch 1,2 mm auf 0,6 mm, 1 Meter (gelb)
Delivery time: 3 ‐ 10 business days (Germany)
Check availability in store:
- Store Oschatz: currently unavailable
Share with friends:
Schönwitz 50169 Schrumpfschlauch 1,2 mm auf 0,6 mm, 1 Meter (gelb) Product Details

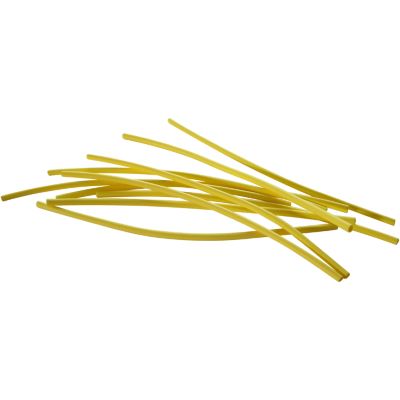

The Schönwitz 50169 heat shrink tubing has a diameter of 1.2 mm before shrinking and reduces to 0.6 mm after shrinking. With a length of 1 meter and available in yellow, this heat shrink tubing is ideal for insulating and protecting small cables and wires. By simply heating, the tubing shrinks to the desired size and provides a secure, precise connection. It is perfect for applications in model making, electronics or fine wiring work where clear color coding is an advantage.
The heat-shrink tubing is intended for professional use due to its very good chemical, mechanical and electrical properties. It guarantees perfect electrical insulation and offers protection against corrosion and mechanical stress.
Supplied with 1 meter of shrink tubing, pre-cut into 10 pieces of 10 cm each.
Features:
- Material: radiation cross-linked polyolefin
- Color: yellow
- Diameter before shrinking: 1.2 mm
- Diameter after shrinking: 0.6 mm
- Shrink ratio: 2:1
- Wall thickness after shrinkage: 0.40 mm
- Shrink temperature: '110 °C
- Longitudinal shrinkage: max. 10 %
- Application temperature: -55 °C to +135 °C
- Tensile strength: 15.0 MPa min (ISO 37)
- Flammability: self-extinguishing
- Dielectric strength: =24 kV / mm
- Tested according to: UL224, CSA 400-U-9
- High resistance to. Acids, alkalis, cleaning fluids, fuels, oils, salt water, fungal growth and rotting
