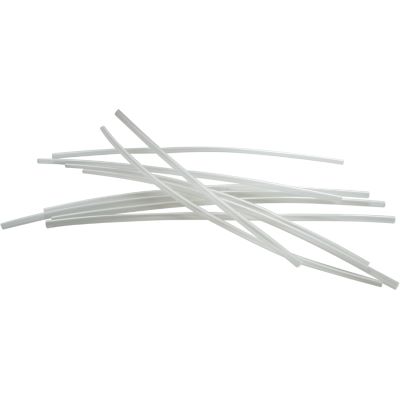

Schönwitz 50173 Schrumpfschlauch 1,2 mm auf 0,6 mm, 1 Meter (transparent)

The Busch 50173 shrink tubing in transparent has a diameter of 1.2 mm and shrinks to 0.6 mm. This thin-walled multi-purpose shrink tubing is ideal for use with LEDs, resistors and thin stranded wires. Thanks to its excellent chemical, mechanical and electrical properties, it is perfect for professional use. The heat-shrink tubing ensures optimum electrical insulation and offers protection against corrosion and mechanical stress. Supplied with 1 meter of heat shrink tubing, pre-cut into 10 pieces of 10 cm each.

Features:

• Material: radiation cross-linked polyolefin
• Color: colorless / transparent
• Diameter before shrinking: 1.2 mm
• Diameter after shrinkage: 0.6 mm
• Shrink ratio: 2:1
• Wall thickness after shrinkage: 0.40 mm
• Shrink temperature: '110 °C
• Longitudinal shrinkage: max. 10 %
• Application temperature: -55 °C to +135 °C
• Tensile strength: 19.0 MPa
• Flammability: self-extinguishing
• Dielectric strength: =26 kV / mm
• Tested according to: UL224, CSA 400-U-9
• High resistance to: acids, alkalis, cleaning fluids, fuels, oils, salt water, fungal growth and rotting
