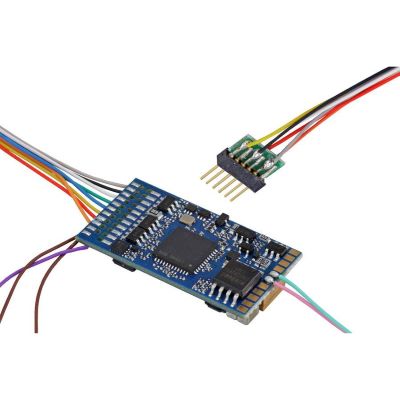

ESU 58416 LokSound 5 DCC/MM/SX/M4 decoder 6-pin NEM651

ESU delivers with the "LokSound5" a combination of digital decoder and sound module. Due to this is achieved just a dimension of 30mm x 15.5mm, which is why the LokSound5 can be installed in almost all locomotives of the gauges H0 and 0.

Features:

• Universal sound decoder for gauges H0 and gauge 0
• Motor current 1,5 A
• Depending on the interface up to 12 amplified function outputs for special functions (Total: Up to 15 outputs)
• 10 sound channels can be played simultaneously
• Ex works with 11x15 mm "sugar cube" speaker with customizable sound capsule set
• PowerPack storage capacitor optionally connectable
• 6-pin NEM 651 interface

Technical data:

• Operation under DCC with RailComPlus®, M4, Motorola® and Selectrix®.
• 32 functions switchable (depending on the command station)
• 32 bit processor
• Digital Class "D" amplifier with up to 3 W power (LokSound 5 XL: 13 W)
• Each channel in 16-bit resolution and 31250 kHz sample rate
• Sound memory with 128 Mbit capacity
• Motor control with 50 kHz clock frequency
• RC servos and Susi modules controllable
• 3 new, individually adjustable brake controllers
• Two-stage heavy load simulation
• Updateable with ESU-LokProgrammer

Specs:

• Gauge: H0
• Type: Accessories
