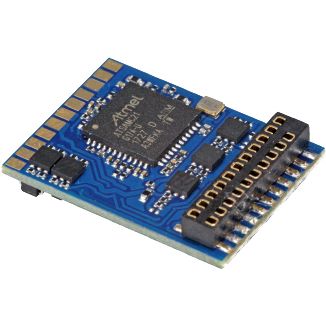

ESU 59619 LokPilot 5 DCC/MM/SX/M4, 21MTC NEM660

The LokPilot 5 is the most important representative of the LokPilot family and is suitable for almost all questions in locomotives of track gauges H0 and 0. LokPilot 5 decoders are offered with all common interfaces.

Features:

• ESU - LokPilot 5 DCC/MM/SX/M4
• NMRA/DCC with 14, 28 and 128 speed steps, DCC RailCom®
• DCC 2-digit and 4-digit addresses (short and long addresses)
• Digital Motorola® (old and new), up to 255 addresses in Motorola® operation
• Selectrix® operation
• M4 operation (automatic registration with mfx® compatible command stations)
• Analog DC voltage (can be switched off). Analog AC voltage (can be switched off)
• Automatic detection of operating mode and DCC speed step setting
• Support for Lenz® LG100, Märklin®, Roco® brake sections and ZIMO® HLU commands
• Support for ABC brake mode and ABC shuttle train route
• Wrong drive bit / storage of operating states
• Intelligent programming mode with Märklin® 6021®
• Shunting mode and acceleration and braking delay switchable by button
• 2.0 A continuous load capacity
• Connection of DC bell armature and AC motors (with permanent magnet)
• Noiseless, motor-friendly control with up to 50 kHz clock frequency
• Motor output protected against overload. 5th generation load control (can be switched off)
• 10 amplified function outputs
• Version with 21MTC interface additionally 2 logic level outputs as well as 2 further logic level outputs instead of SUSI
• Version with PluX22 interface 2 logic level outputs instead of SUSI
• 250mA load capacity per amplified output
• Total current of all function outputs approx. 500mA. Outputs short circuit proof
• Assignment of function outputs freely selectable (function mapping)
• dimensions: 21,4mm x 15,5mm x 4,5mm

Specs:

• Gauge: H0
• Type: Accessories
