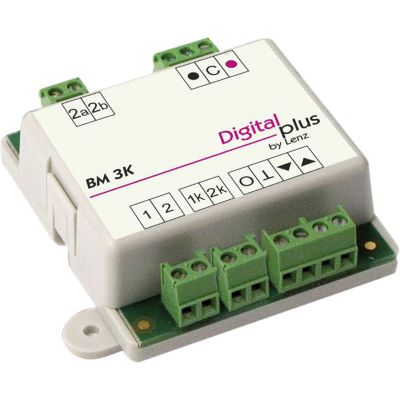

Lenz 22621 Blockstreckenmodul BM3K

Block section module for reverse loops BM3K.

If you want to run a block section built with the BM3,through a reverse loop, then you need, in addition to the LK200 of course, a specialBM3 module, the BM3K, and 2 of them.

The reason for this is the signaling line, which consists of only onewire, which is very practical in 'normal cases'.

In this particular case, however, the potentialreversed by the reverse loop module, so the signal via the signal line would no longer work.would no longer work.

Therefore, in the case of the reverse loop, the signaling line must be made independent of the potentialpotential applied to the track - and we achieve this with the two modified BM3Ks.

Features:

• Dimensions: 53 x 60 x 20 mm

Specs:

• Gauge: All

Instruction manual / Safety instructions:

• Manual (1.39 MB)

Further links:

• Print View

CAUTION: Not suitable for children under 3 years. Danger of swallowing! Age recommendation from 14 years.
