Märklin 39513 H0 E-Lok Serie Be 4/6, SBB, Ep. IV, AC-MFX-Sound
available again expected 05/10/2026
Delivery time: 66 ‐ 73 business days (Germany)
Check availability in store:
- Oberwiesenthal: currently unavailable
- Oschatz: currently unavailable
Share with friends:
Märklin 39513 H0 E-Lok Serie Be 4/6, SBB, Ep. IV, AC-MFX-Sound Product Details
Are you looking for an Era IV SBB electric locomotive with Swiss light changes and AC MFX sound?

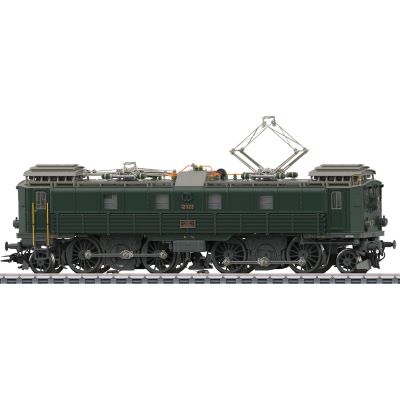

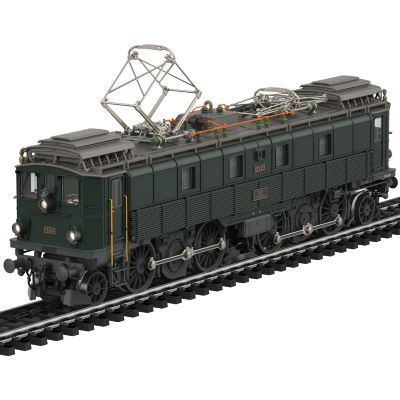

The Märklin 39513 H0 Class Be 4/6 Electric Locomotive, SBB, Era IV, AC MFX Sound is a high quality model for model railroaders who are looking for a Swiss electric locomotive with a strong character and extensive digital equipment. The prototype is the Be 4/6 series electric locomotive of the Swiss Federal Railways. The rebuilt version is shown until it is taken out of service.
The locomotive has a basic fir green paint scheme with traffic gray running gear. It has the locomotive road number 12323 and represents the operating condition at the beginning of the 1970s. This makes the model a particularly good fit for an H0 layout of Era IV with a Swiss railroad theme.
Prototype: SBB series Be 4/6 in a rebuilt version
The prototype for the Märklin 39513 is an electric locomotive of the Be 4/6 series of the Swiss Federal Railways. The version shows the rebuilt version until it was taken out of service. The locomotive is equipped with sleeve buffers, a sanding system, an authorization signal, and Integra-Signum magnets.
The special external features include cab doors on the long and short sides, which are partially welded shut and designed without transition plates. The longitudinal cooling coils have 11 vertical brackets. These details make the locomotive a very specifically described SBB version.
Digital technology, sound and drive
The model is equipped with an mfx+ digital decoder and has extensive sound and light functions. The controlled high-performance drive with flywheel mass is installed centrally. Both driving wheels and the dummy shaft in both driving frames are driven by cardan shafts.
The locomotive also has traction tires and an articulated chassis that can negotiate curves. The minimum passable radius is 360 mm. With a length over buffers of 18.9 cm, the Märklin Be 4/6 is a compact but very present model for H0 operation.
Swiss light change and switchable lighting

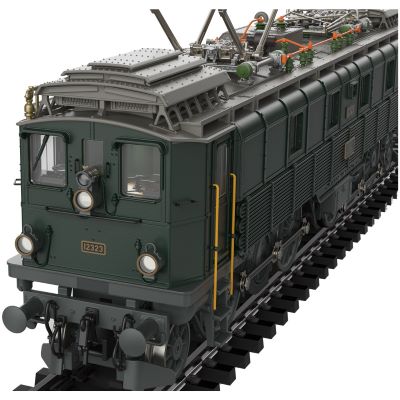

The Märklin 39513 has a triple headlights that change over with the direction of travel and 1 white marker light as a Swiss light changeover. This lighting is in conventional operation and can be controlled digitally. When running solo, the lighting can be switched to 1 red marker light.
The headlights can be controlled separately in digital operation. The headlights on locomotive end 2 and locomotive end 1 can each be turned off separately in digital operation. The model also has a double A light function. The additional cab lighting and the engine room lighting can each be controlled separately in digital operation. Maintenance-free warm white and red LEDs are used for the lighting.
Highly detailed metal version
The locomotive is a highly detailed metal model. Many separately applied details characterize the model, including the cooling tubes for the transformer oil. The model also has a replica of the driver's cab and engine room.

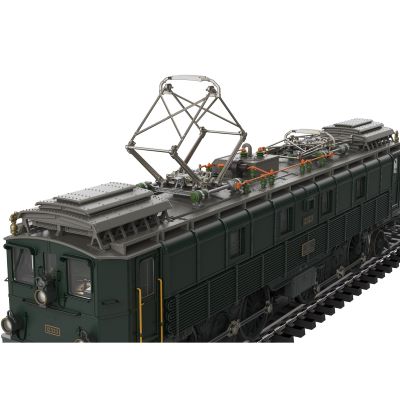

The roof equipment is also detailed. Heating resistors, roof cables, insulators, lightning protection coils and roof running boards are included. There is also a sanding system on the driving wheel groups. Brake hoses, imitation screw couplers and steps are included.
Recommended purchase
If you are looking for a Swiss H0 electric locomotive with AC MFX sound, mfx+ digital decoder, Swiss light change, and a highly detailed metal design, the Märklin 39513 Be 4/6 series electric locomotive is a very suitable choice. Add this SBB locomotive full of character with road number 12323 and extensive digital functions to your Era IV layout now.
Features:
- Manufacturer: Märklin
- Item number: 39513
- Nominal size: H0
- Product description: Be 4/6 series electric locomotive
- Railroad Administration: SBB
- Railroad Company: Swiss Federal Railways
- Era: IV
- Version: AC MFX sound
- Prototype: Be 4/6 series electric locomotive
- Rebuilt version until decommissioning
- Fir green basic paint scheme
- Traffic gray running gear
- With sleeve buffers
- Longitudinal and front cab doors partially welded shut
- Without transition plates
- With sanding system
- With driving authorization signal
- With Integra-Signum magnets
- Longitudinal cooling coils with 11 vertical brackets
- Locomotive road number: 12323
- Operating condition: Early 1970s
- With mfx+ digital decoder
- Extensive sound functions
- Extensive light functions
- Regulated high-performance drive
- Centrally installed flywheel mass
- Both driving wheels and dummy shaft in both driving frames driven by cardan shafts
- Traction tires
- Articulated running gear for cornering
- Triple headlights that change over with the direction of travel
- 1 white marker light as Swiss light change
- Conventional lighting in operation and digitally switchable
- Lighting can be switched to 1 red marker light for solo operation
- Separately digitally switchable driving authorization signal
- Headlights on locomotive side 2 can be switched off separately digitally
- Headlights on locomotive side 1 can be switched off separately in digital mode
- Double A light function
- Additional cab lighting can be switched separately in digital mode
- Engine room lighting can be separately controlled digitally
- Lighting with maintenance-free warm white and red LEDs
- Highly detailed metal design
- Many separately applied details
- Cooling tubes for the transformer oil
- Driver's cab replica
- Engine room replica
- Sanding system on the driving wheel groups
- Detailed roof equipment
- Roof equipment with heating resistors
- Roof equipment with roof cables
- Roof equipment with insulators
- Roof equipment with lightning protection coils
- Roof equipment with roof running boards
- Minimum traffic radius: 360 mm
- Brake hoses are included
- Imitation screw couplings are included
- Steps are included
- Length over buffers: 18.9 cm
Specs:
- Gauge: H0
- Rail Company: SBB
- Era: IV
- Color: Green
- Electricity System: AC
- Analogue / Digital: Digital
- sound: Yes
- News: 2026
- Type: Electric loco
Further links:
CAUTION: Not suitable for children under 3 years. Danger of swallowing! Age recommendation from 14 years.
