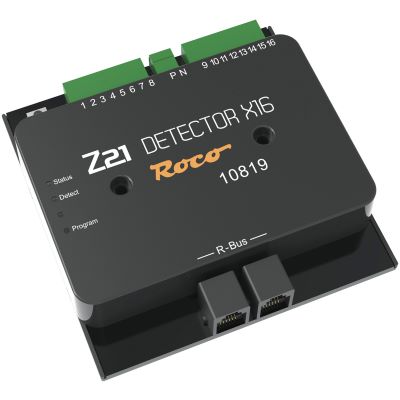

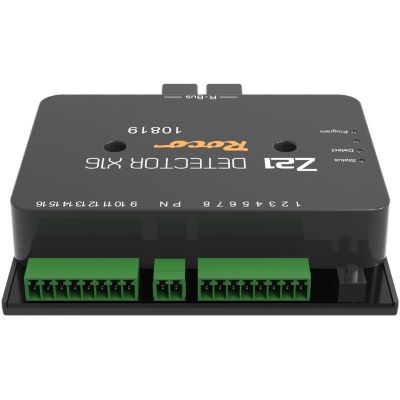

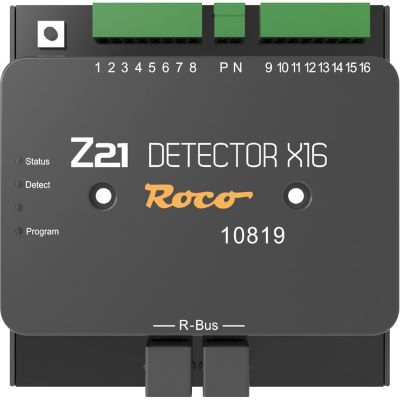

Roco 10819 Z21 DETECTOR X16

Roco 10819 Z21 DETECTOR X16: Advanced Track Occupancy Detector for Model Railways

The Z21 DETECTOR X16 is a sophisticated track occupancy detector designed to monitor up to 16 track sections on a model railway layout. Using current detection, the Z21 DETECTOR X16 provides real-time occupancy updates, making it an essential tool for railway enthusiasts who want precise control over their digital layouts. With an R-BUS connection and convenient configuration via button controls or POM CV programming, this detector offers flexibility and ease of use. It’s compatible with DCC and Motorola digital systems, offering versatile integration for a wide range of setups.

16-Section Track Occupancy Detection with Current Monitoring

The Z21 DETECTOR X16 uses current detection to monitor track occupancy across 16 sections, making it ideal for layouts with multiple trains or complex track designs. By detecting current flow in each section, the Z21 DETECTOR X16 accurately identifies occupied sections, enabling users to manage traffic and avoid collisions. This level of control is especially useful in automated layouts or scenarios where real-time occupancy updates are necessary. The Z21 DETECTOR X16 is thus well-suited for both hobbyists and advanced users who require a robust detection system.

Flexible Configuration and Easy Integration

This occupancy detector is designed for user-friendly configuration, offering setup options through button controls or POM CV programming. The R-BUS connection ensures seamless integration with other Z21 components and compatible digital systems. The Z21 DETECTOR X16 is compatible with both DCC and Motorola digital protocols, making it versatile and adaptable to different model railway systems. Whether adding it to an existing setup or building a new layout, this detector offers the flexibility needed for modern digital model railways.

Efficient Power Management and Specifications

The Z21 DETECTOR X16 is built for efficient power usage, with a maximum input current of 3 A and an operating voltage range of 12 to 24 V (DCC or MM). Each channel supports an output of up to 3 A, allowing for reliable detection across all sections. With low self-consumption rates—0.4 W on the R-BUS and 0.96 W on the track input—the detector conserves energy while providing high performance. This efficient design makes it a sustainable choice for users who want to expand their layout without significantly increasing power demand.

Compact and Durable Design

With dimensions of 104 x 104 x 25 mm, the Z21 DETECTOR X16 is compact enough to fit comfortably within most layout configurations. Its robust build quality ensures longevity, making it suitable for long-term use in a variety of settings. This compact form factor allows for easy installation in tight spaces, while the durable construction ensures reliable performance under continuous operation.

Conclusion: Z21 DETECTOR X16 – A Reliable and Versatile Occupancy Detector

The Z21 DETECTOR X16 is an excellent choice for model railway enthusiasts who seek accurate, real-time track occupancy monitoring. With its current-based detection, support for 16 track sections, and compatibility with DCC and Motorola systems, this detector provides a powerful and flexible solution. Its easy configuration options, efficient power management, and compact design make it a practical addition to any layout, enabling hobbyists to enhance their railway’s functionality. For advanced model railway setups requiring precise occupancy detection, the Z21 DETECTOR X16 is an indispensable tool.

Features:

• Track occupancy detector for 16 sections
• Occupancy detection via current monitoring
• Connects via R-BUS for seamless integration
• Configuration through button controls and POM CV programming
• Input voltage: 12 - 24 V (DCC or MM compatible)
• Max input current: 3 A
• Self-consumption on R-BUS: 0.4 W
• Self-consumption on track input: 0.96 W
• Output per channel: 3 A
• Compatible with DCC and Motorola digital systems
• Occupancy detection: 16 x through current sensing
• Dimensions: 104 x 104 x 25 mm

Specs:

• Gauge: All

Instruction manual / Safety instructions:

• Manual (2.43 MB)

Further links:

• Print View

CAUTION: Not suitable for children under 3 years. Danger of swallowing! Age recommendation from 14 years.
