YaMoRC YD9401 Netzwerk-Upgrade-Modul für Digikeijs DR5000 Product Details

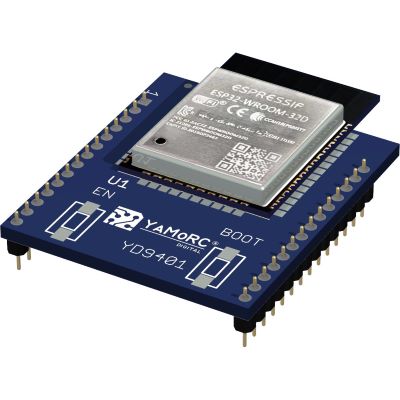

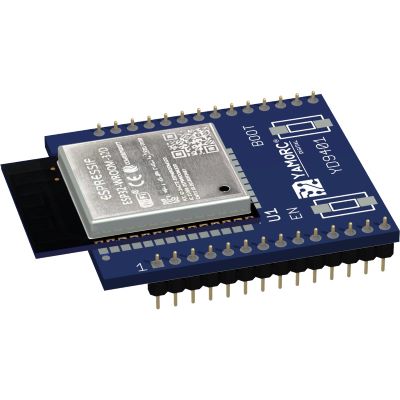

YaMoRC YD9401 network upgrade module for Digikeijs DR5000 - modern WiFi & LAN for your control panel
With the YaMoRC YD9401, your Digikeijs DR5000 digital central unit receives a powerful and future-proof upgrade. This module replaces the outdated RM04 WLAN module and transforms your control panel into a modern network controller with comprehensive protocol support and intuitive operation - without any additional software or app.
Standalone WLAN or home network? Both are possible!
The YD9401 can be operated as a standalone WiFi access point - perfect for mobile use without an existing network. Alternatively, it can be integrated directly into your home network via the integrated 100baseT Ethernet port. Configuration and operation are carried out conveniently via the integrated web server - simply using a browser, without PC software or an app.
Broad protocol support - all at the same time!
The module supports a variety of control protocols in parallel: XpressNet-LAN, Z21®, LocoNet Binary, LocoNet LBServer, JMRI (WiThrottle) and YD.Command - both via LAN and WLAN. This turns your DR5000 into a multifunctional control center that integrates seamlessly into modern system environments. After the upgrade, your control panel behaves like a fully-fledged YaMoRC YD7001 Command Station - including extended network functions.

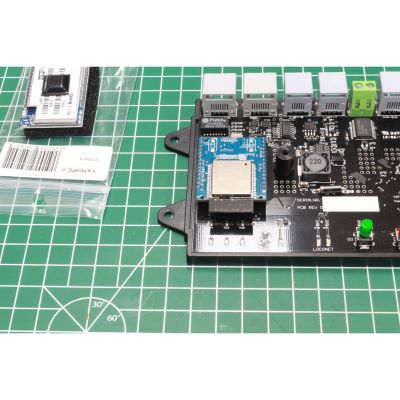

Simple retrofitting - can also be carried out by the end user
The installation can be carried out by the user themselves - with normal technical understanding. However, if you are not comfortable with the conversion, many dealers or YaMoRC itself offer an upgrade service. This allows the DR5000 to be upgraded quickly and safely - without the need to purchase an expensive new control panel.
Upgrade now and enjoy full control!
The YaMoRC YD9401 network upgrade makes your Digikeijs DR5000 fit for the future - with modern network protocols, intuitive configuration and maximum compatibility. Now available in the model railroad store - ideal for all those who want to exploit the full potential of their command station!
Features:
- WiFi/WLAN access point for standalone operation
- LAN 100baseT Ethernet port for integration into the home network
- Integrated web server - configuration without software or app
- Protocols: XpressNet-LAN, Z21®, LocoNet Binary, LocoNet LBServer, JMRI (WiThrottle), YD.Command
- Simultaneous operation of all protocols via WLAN & LAN
- Converts DR5000 into a YD7001 Command Station
- Upgrade by end user possible
- Upgrade service optionally available
Specs:
- Gauge: All
Instruction manual / Safety instructions:
Further links:
CAUTION: Not suitable for children under 3 years. Danger of swallowing! Age recommendation from 14 years.
Frequently asked questions
| Question: | What is the YaMoRC YD9401 used for? |
| Answer: | The YD9401 is a network upgrade for the Digikeijs DR5000 digital command station. It replaces the original RM04 Wi-Fi and LAN module and adds modern networking functions. The module is not a standalone command station and is not automatically compatible with other command-station models. |
| Question: | Can the upgraded DR5000 be used without an existing home network? |
| Answer: | Yes. The YD9401 can create its own Wi-Fi access point, allowing compatible control devices to connect directly. Alternatively, the integrated 100Base-T Ethernet port can be used to connect the command station to an existing home network. |
| Question: | Which network protocols does the YD9401 support? |
| Answer: | The module supports XpressNet-LAN, Z21, LocoNet Binary, LocoNet LBServer, JMRI WiThrottle and YD.Command. These protocols can operate simultaneously through Wi-Fi and LAN. Compatible handheld controllers, apps and model railway programs can therefore be used in parallel when they support one of these protocols. |
| Question: | How is the module configured? |
| Answer: | An integrated web server provides access to the configuration settings. Basic setup can therefore be performed through a standard web browser on a computer, smartphone or tablet without requiring a dedicated app. After the upgrade, the DR5000 provides the expanded functionality associated with a YaMoRC YD7001 command station. |
| Question: | Can the upgrade be installed by the user? |
| Answer: | Installation is intended to be possible for users with suitable technical knowledge, but it requires opening the DR5000 and replacing its existing network module. The instructions should be read completely and the command station disconnected from power before installation. Fitting the upgrade may void any remaining Digikeijs warranty on the DR5000; the warranty for the YD9401 applies only to the upgrade module. |
