Uhlenbrock 41200 ABBS Anfahr-Bremsbaustein N-H0
Delivery time: 1 ‐ 2 business days (Germany)
Check availability in store:
- Store Oschatz: can be picked up immediately
Share with friends:

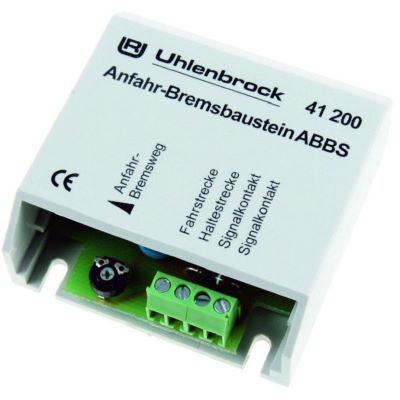

Uhlenbrock 41200 ABBS Anfahr-Bremsbaustein N-H0 Product Details
At Hp0, the start-up/brake function block slowly brakes the train when it passes the separation point and stops in front of the signal. When the signal is released, it then slowly accelerates again to its set speed. At Hp 1, the train passes the signal section without changing speed.
Perfect technology: The module is fully electronic and equipped with short-circuit protection. In the stopping sections, the traction current is limited to 1.4 A, so that even in the event of a short circuit, there is no danger to the module, lines or rails.
Connection made easy: A separation section of about 1 m length (for H0) is set up. The module is inserted between the signal and the rails. The connection is made without soldering via screw terminals. No electrical modifications to the layout are required. The delay can be adjusted in a wide range with a potentiometer. Since the module draws its operating voltage from the traction voltage, no additional power supply is required.
Features:
- Driving voltage: 0-16 V
- Maximum traction current: 1.4 A
- Slow stop at red signal
- Trains stop in both directions
- For signals on single track lines: Trains stop in both directions of travel. Starting and braking distance can be adjusted at a potentiometer
Specs:
- Gauge: All
