YaMoRC YD6016RB-CS 16-Kanal Rückmeldemodul with RBus / XBus Schnittstelle

YaMoRC YD6016RB-CS 16-channel feedback module with RBus / XBus interface

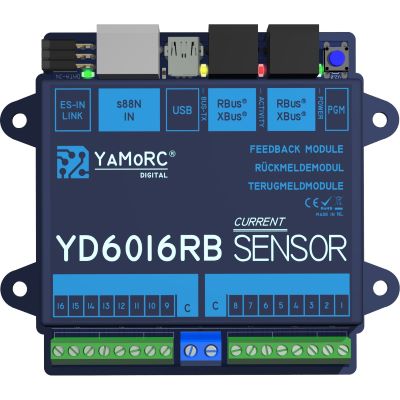

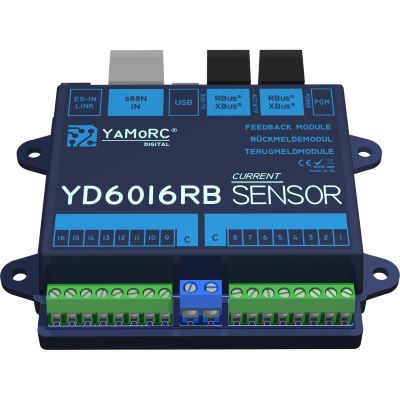

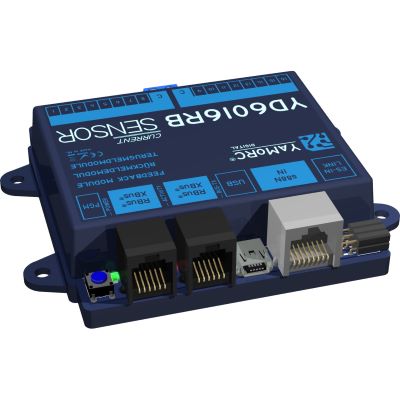

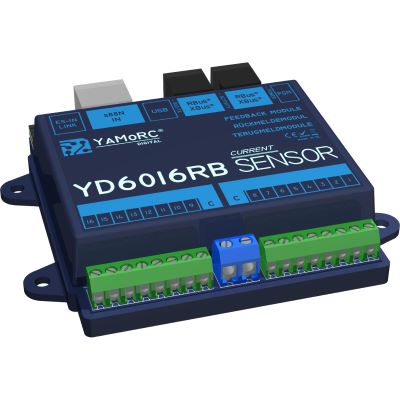

The YaMoRC YD6016RB-CS is a modern feedback module with 16 channels, which offers current signaling inputs and is connected via RBus or XBus. It is a "current sense" module that detects occupancy signals as soon as current flows through consumers - ideal for track occupancy signals, feedback from consumer circuits or other current consumers in digital systems.

Technical data & range of functions

The module is divided into two independent blocks of 8 inputs each, each block with its own earth connection. Each input detects current from approx. 1 mA, with a continuous load of 2 A per input and a maximum of 8 A combined across all inputs. Short-term overloads (e.g. short current peaks) of up to 5 A for approx. 100 ms are possible. To improve interference immunity, each input is equipped with a capacitive input signal filter that suppresses interference from long connection cables.

Interfaces, configuration & expandability

The YD6016RB-CS has RBus and XBus interfaces for communication with compatible YaMoRC hardware. For configuration and updates, there is a USB connection with a virtual COM port via which the firmware can be updated. The module can be configured via a configuration module (e.g. YD9101) or via a web interface. Up to four additional YD6016ES modules can be connected directly via ES-IN-Link, allowing up to 80 feedback inputs to be realized in a network.

Use & advantages

This module is particularly suitable when precise feedback on current load is required, for example for detecting occupied/ free in the track, or for detecting whether consumers such as track heaters, light strips or signals are drawing current. The combination of high sensitivity, stable interface and flexible expandability makes it ideal for medium to large digital systems with many signaling areas.

Features:

• 16 current sense detectors
• 2 blocks of 8 inputs, each with its own common
• 2 A continuous current per input
• 8 A total current across all inputs
• 5 A short-term overload (100 ms) per input
• Sensitivity from approx. 1 mA
• Capacitive input signal filter on each input
• RBus / XBus interface
• USB port with virtual COM port for updates / configuration
• Firmware updateable
• ES-IN-Link expansion possible (up to 80 inputs with additional YD6016ES module)

Specs:

• Gauge: All

Instruction manual / Safety instructions:

• Manual (2.29 MB)

Further links:

• Print View

CAUTION: Not suitable for children under 3 years. Danger of swallowing! Age recommendation from 14 years.
