ESU 50096 ECoSDetector Standard Rückmeldemodul,
Delivery time: 1 ‐ 2 business days (Germany)
Check availability in store:
- Store Oschatz: can be picked up immediately
Share with friends:
ESU 50096 ECoSDetector Standard Rückmeldemodul, Product Details

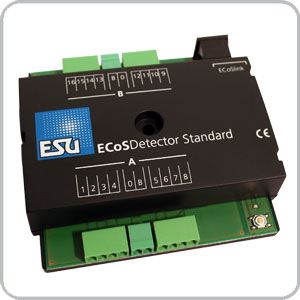

The ESU 50096 ECoSDetector Standard feedback module monitors 16 track sections and detects train movements on 3-wire tracks. It can also be used as a switching input for various signals and is connected directly to the command station. The operating software can be updated for continuous technical improvements.
Features:
ECoSDetector Standard feedback module
With the ECoSDetector Standard, ESU presents a reliable and inexpensive feedback module for model railroads. This module is ideal for model railroaders who have no need for the extended functions of the ECoSDetector. It serves as a modern replacement for older s88 feedback modules and requires no changes to the track side.
Monitoring and reporting
- Monitors 16 track sections
- Determines whether a train is on a section (occupied signal)
- Can be used with any 3-wire track (M, K or C track)
Switching inputs
- 16 inputs can be used as conventional switching inputs
- Connects reed contacts, switching tracks, buttons and toggle switches
- Information is processed in the control center
ECoSlink connection
- Direct connection to the control center via the ECoSlink bus
- Compatible with ECoS command stations and Central Station® Reloaded with update from ESU
- Automatic integration and graphical configuration in the central station
Future built in
- Updatable operating software
- Automatic updates by the central station
- Always state of the art
Specs:
- Gauge: All
Instruction manual / Safety instructions:
Further links:
CAUTION: Not suitable for children under 3 years. Danger of swallowing! Age recommendation from 14 years.
