Littfinski 700012 DSU (Fertigmodul)

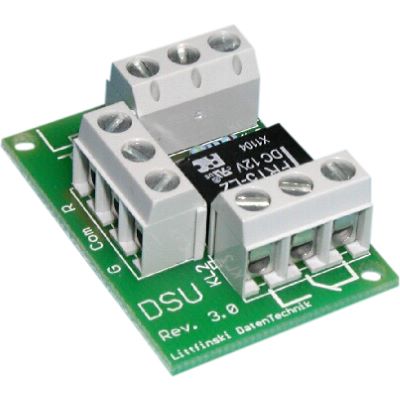

The Littfinski 700012 DSU (ready-to-use module) is a compact and ready-to-use module for the digital control of lighting on model railroad layouts.

Features:

DSU (ready-to-use module)

Permanent current changeover switch (DSU)

How to switch (e.g. lighting) digitally!

• DSU permanent current changeover switches can be connected directly to any output of our QS-DEC-II and S-DEC-4 magnetic article decoders.
• This makes it easy to switch points, street or house lighting digitally.
• As the DSU permanent current changeover switch is only 38*27*15 mm in size, it can be easily installed directly in buildings.
• Simple and safe connection to S-DEC-4 or QS-DEC-II points decoders and light sources via screw terminals.
• If the DSU permanent current changeover switch is combined with the TT-DEC turntable decoder, the polarity of the stage track of a 2-conductor turntable is automatically reversed with every 180 degree turn.
• Ready for immediate use as a finished module for a maximum current load of up to 4A (two changeover contacts up to 2A each).
• The DSU permanent current changeover switch contains a bistable relay that 'stores' the short changeover pulses of the QS-DEC-II and S-DEC-4 magnetic article decoders. This means that the connected lighting remains permanently switched on or off.
• You too can switch the lighting on your system digitally for just € 9.90 per DSU permanent current changeover switch.
• Each DSU permanent current changeover switch comes with detailed operating and assembly instructions.

Specs:

• Gauge: All
