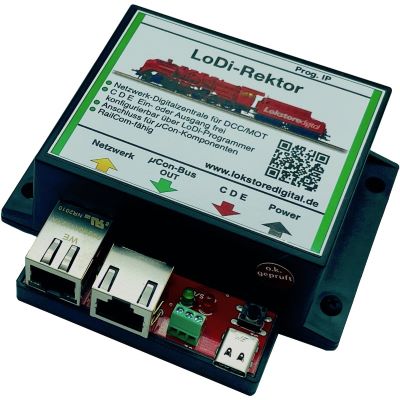

Lokstoredigital LoDi013 LoDi-Rektor

The LoDi Rector is an interface that is required to generate the necessary locomotive data formats. It is the link between the computer and the locomotive. The raw locomotive data is generated by the computer and sent to the LoDi-Rector. This then generates the required track signal. The LoDi-Rector currently supports DCC, Motorola and M3. The LoDi-Rector controls the connected components via the µCon bus. The µCon bus was developed as a booster bus and further developed by us. It is fully downward compatible with the old µCon devices that can be connected to the µCon bus. The LoDi-Rector can be used as a pure booster interface and a separate central unit can be connected to C D E. The C D E is conveniently switched from OUT to IN via our LoDi programmer. Modern network interface, therefore driverless operation. Digital central unit and track signal generator of the latest version 2.0. Faster processing from PC to LoDi controller, less data traffic, more efficient processing. Perfect for all sizes of model railway layout, whether small, large or even larger, the LoDi-Rektor has enough power to cope effortlessly with even the largest layouts. However, if your layout reaches a size where normal control centers reach their limits, simply connect a second LoDi reactor to the system. You can easily configure so-called "hand-over points" for this purpose.

Features:

• Suitable for all track sizes
• However, if your layout reaches a dimension where normal command stations reach their limits, you can simply connect a second LoDi reactor to the system
• Currently supports DCC, Motorola and M3
• Control of the connected elements via the µCon bus
• Can be used purely as a booster interface
• A separate control center can be connected
• Modern network interface
• Digital control center and track signal generator of the latest version 2.0
• Faster processing from PC to LoDi controller
• Less data traffic
• More efficient processing
• Dimensions: 89 x 100 x 35 mm

Specs:

• Gauge: All
