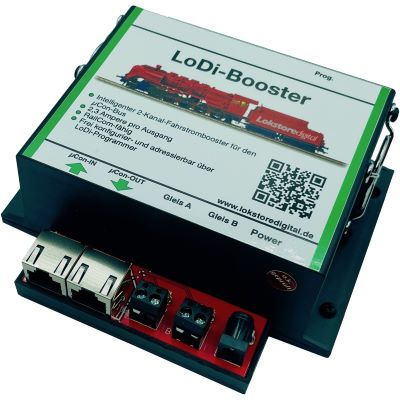

Lokstoredigital LoDi014 LoDi-Booster 20 Volt

The LoDi booster has two channels, each of which provides 2.3 A. In systems that are monitored with RailCom, the LoDi booster provides the so-called RailCom cutout, which is responsible for transmitting the RailCom return signals.

The LoDi booster supplies the current required to operate the digitally controlled locomotives and points, as well as all other consumers on the system.

In the event of a short circuit on the model railway layout (caused, for example, by a derailed wagon or locomotive), the booster switches off the power on the layout to prevent further damage to the rails or rolling stock. Thanks to the integrated intelligence of the LoDi booster, only the affected areas are switched off in the event of a short circuit and reported back to the software controller used. This means that the rest of the model railway layout can continue to run without risk of damage to the rolling stock. The booster supplies the voltage to the track so that the digital driving and switching commands can reach all vehicle or accessory decoders on the layout.

Features:

• Scope of delivery: LoDi booster, 50cm µCon bus cable green, European power cable, 20-volt switching power supply unit
• Output power of 5 A distributed over twooutputs with 2.3 A each
• 2x2.3A plus peek = 5A
• Dimensions: 130 x 115 x 45 mm
• Weight: 275 g

Specs:

• Gauge: All

Further links:

• Print View

CAUTION: Not suitable for children under 3 years. Danger of swallowing! Age recommendation from 14 years.
