Lokstoredigital LoDi020 LoDi-S88-CommanderLX (ehemals LoDi004)

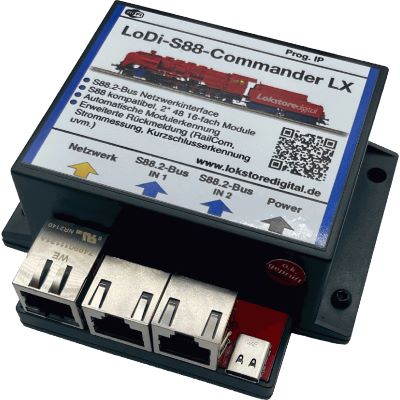

The successor to the S88-Commander, the LoDi-S88-Commander LX. A completely revised version of the S88.2 interface. With a new 32 bit DualCore processor, it offers much more performance than its predecessor. In addition, it now has a built-in WLAN (from version 6.2.0). The integration of DHCP makes it easier to integrate into networks and, in addition to the UDP protocol, it now also speaks the TCP protocol - for even more secure transmission of data to software or other components such as the LoDi-Con.It is also prepared for automatic login via DCC-A in accordance with RCN-218. This will be available in future via a software update and in conjunction with the LoDi-8-GBM v2.

Features:

• The LoDi-S88-Commander and LoDi-S88-Commander LX is the interface for the S88.2 bus and the s88 bus and is therefore the link between the computer and the signaling modules
• Very fast processing of all detectors on the bus
• Up to 10 times faster data processing thanks to the latest technology
• You can connect and read up to 2* 48, i.e. a total of 96* 16-fold signaling modules to the LoDi-S88-Commander LX
• Automatic module recognition on bus 1 and 2 ( only for S88.2 bus participants )
• Modules with the new S88.2 standard can now be addressed and retain their address
• Extended feedback options with LoDi-8-GBM, LoDi-8-GBM-P, LoDi-RM-16
• Simple configuration thanks to LoDi-ProgrammerFX
• The new S88.2 data bus is a further development of the s88 bus, which now also allows us to forward data such as RailCom®, current measurement or short-circuit detection and even QOS ( Quality of Service ) to the model railway software
• LoDi-S88-Commander LX is prepared for WLAN and DCC-A. This will be available in 2023 via a software update in the LoDi-ProgammerFX
• The LoDi-S88-Commander LX is DHCP-capable, making it even easier to integrate into an existing network
• Modern network interface, thus driverless operation!
• USB power supply included

Specs:

• Gauge: All
