Lokstoredigital LoDi1009 Set Melden 16+ (S88-CommanderLX, 2*LoDi-RM 16+)

The Lokstoredigital Set Melden 16+ consists of the following components:

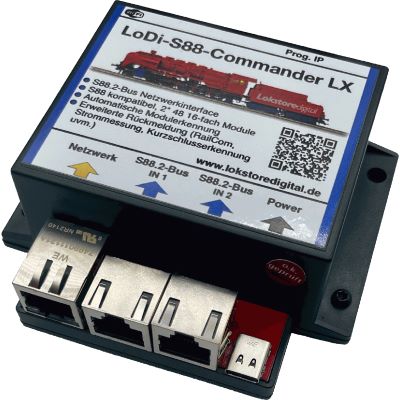

1 x LoDi-S88-Commander LX:

Welcome to the next step in model railroad technology - the LoDi-S88-Commander LX, the successor to the S88-Commander. This completely redesigned S88.2 interface sets new standards thanks to its powerful 32-bit DualCore processor, which provides significantly more performance than its predecessor.

However, the innovations do not stop here. The LoDi-S88-Commander LX now has integrated WLAN (from version 6.2.0), which enables uncomplicated network integration thanks to the integration of DHCP. With support for both UDP and TCP protocols, it offers even more secure data transfer to the software or other components such as the LoDi-Con.

Under the new S88.2 standard, more data can now be transmitted via the bus than just the simple message "Detector on" or "Detector off". The needs of model railroaders have been taken into account in order to further develop the S88 system while maintaining compatibility.

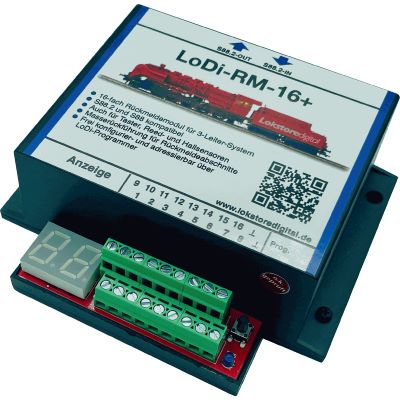

2 x LoDi-RM-16+:

The LoDi-RM-16+ makes feedback in the 3-wire system easier than ever before. This feedback unit has an integrated diode trick that directly feeds back the earth on the feedback side. This means not only maximum efficiency, but also convenient handling with the familiar characteristics of a standard feedback unit.

Thanks to the integration of the new s88.2 bus, the annoying odyssey of shifting addresses comes to an end. The LoDi-RM-16+ assigns a fixed address that is stored directly in the device - for clear structures and uncomplicated use. All outputs of the LoDi-RM-16+ can be individually named. In supported model railroad software applications, these designations can be read out directly to make configuration even easier.

In addition to its main function as a feedback unit, the LoDi-RM-16+ is also ideal as a push-button feedback unit or for car systems that work with Hall sensors or reed contacts. Versatility and ease of use are combined in the LoDi-RM-16+ for an optimal feedback experience in your model railroad system.

Features:

S88-CommanderLX

• The LoDi-S88-Commander and LoDi-S88-Commander LX is the interface for the S88.2 bus and the s88 bus and is therefore the link between the computer and the signaling modules
• Very fast processing of all detectors on the bus
• Up to 10 times faster data processing thanks to the latest technology
• You can connect and read up to 2 x 48, i.e. a total of 96 x 16-fold signaling modules to the LoDi-S88-Commander LX
• Automatic module detection on bus 1 and 2 (only for S88.2 bus devices)
• Modules with the new S88.2 standard can now be addressed and retain their address
• The new S88.2 data bus is a further development of the s88 bus, which now also allows us to forward data such as RailCom®, current measurement or short circuit detection and even QOS ( Quality of Service ) to the model railroad software
• The LoDi-S88-Commander LX is DHCP-capable, making it even easier to integrate into an existing network
• Modern network interface, thus driverless operation

LoDi-RM 16+

• The LoDi-16-RM+ is a feedback module developed for use on the S88.2 or s88 bus
• 16 feedback channels can be monitored per module
• Integrated diodes allow the earth to be fed back to the separate feedback side in the 3-wire rail system. This means a significantly improved power supply for the locomotives in the detector
• The LoDi-RM-16+ is suitable for push-buttons, Hall sensors, reed contacts or even switch position feedback via limit switches
• The LoDi-RM-16+ can be easily configured via the LoDi-ProgrammerFX and has a display for direct control of the detectors and display of the module's address
• oll downward compatible! The LoDi-RM-16+ can also be operated on the s88N and, with an adapter, on an old s88 bus. However, the full functions are not available here as in the S88.2 bus

Specs:

• Gauge: All
