Lokstoredigital LoDi2009 Set Melden (S88-CommanderLX, 2* 8-GBMv2)

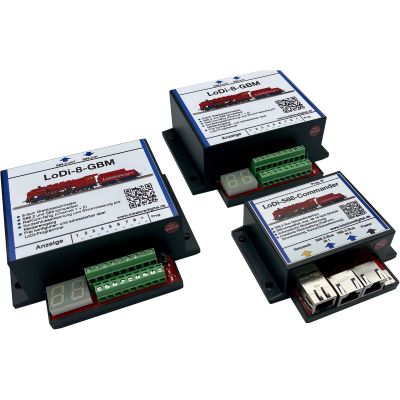

Set consisting of the LoDi-S88-Commander LX and two LoDi-8-GBM v2.

LoDi-S88-Commander LX

A completely revised version of the S88.2 interface. With a new 32-bit DualCore processor, it offers much more performance than its predecessor. In addition, it now has WLAN (from version 6.2.0). Thanks to the integration of DHCP, the LoDi-S88-Commander LX is now easier to integrate into networks and, in addition to the UDP protocol, also speaks the TCP protocol in order to transfer data to the software or other components such as the LoDi-Con even more securely.It is also prepared for automatic login via DCC-A according to RCN-218. This will be available in future via a software update and in conjunction with the LoDi-8-GBM v2.

LoDi-8-GBM v2

Lokstoredigital's track occupancy detection module - the second component of the new feedback system, which has already proven itself very successfully in small and large to very large layouts. The focus here is on simple set-up and monitoring options. Thanks to the new S88.2 standard and unconditional RailCom compatibility, it offers a new dimension in safety. Where previously there was only hope, there is now certain knowledge of where the vehicles are actually located on the system.

Features:

LoDi-s88-Commander LX

• The LoDi-S88-Commander and LoDi-S88-Commander LX is the interface for the S88.2 bus and the s88 bus and is therefore the link between the computer and the signaling modules
• Very fast processing of all detectors on the bus
• Up to 10 times faster data processing thanks to the latest technology
• You can connect and read up to 2 x 48, i.e. a total of 96 x 16-fold signaling modules to the LoDi-S88-Commander LX
• Automatic module recognition on bus 1 and 2 (only for S88.2 bus devices)
• Modules with the new S88.2 standard can now be addressed and retain their address
• Extended feedback options with LoDi-8-GBM, LoDi-8-GBM-P, LoDi-RM-16+
• Simple configuration thanks to LoDi-ProgrammerFX
• The new S88.2 data bus is a further development of the s88 bus, which now also allows us to forward data such as RailCom®, current measurement or short-circuit detection and even QOS (Quality of Service) to the model railway software
• LoDi-S88-Commander LX is prepared for WLAN and DCC-A. This will be available in 2023 via a software update in the LoDi-ProgammerFX
• The LoDi-S88-Commander LX is DHCP-capable, making it even easier to integrate into an existing network
• Modern network interface, therefore driverless operation

Features:

LoDi-8-GBM v2

• The LoDi-8-GBM v2 is a track occupancy detector that was developed for the S88.2 bus
• It operates 8 track sections, each of which can be loaded with 3 amps
• All 8 track sections, i.e. signaling channels, are RailCom-capable and can be monitored via channels 1 and 2
• The track occupancy detector also provides an exact current consumption per track section and can even detect short circuits directly in the block
• Can be used universally with 2- and 3-wire track systems
• The LoDi-8-GBM v2 can be easily configured via the LoDi-ProgrammerFX
• Display for direct control of the detectors and display of the module address
• Fully downward compatible. The LoDi-8-GBM v2 can also be operated on the s88N and, with an adapter, on an old s88 bus. However, the full functions are not available here as on the S88.2 bus

Specs:

• Gauge: All
