Lokstoredigital LoDi20606 Set Raumlichtsteuerung Shift-Commander, 4-C-LED

This set consists of the LoDi-Shift-Commander and the LoDi-Light-Operator 4-C-LED.

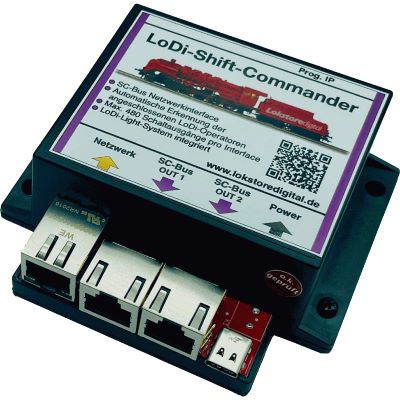

LoDi-Shift-Commander

The LoDi-Shift-Commander controls switches, signals, lighting effects and room lighting. With up to 480 switching outputs, even medium-sized layouts can be operated with just one LoDi-Shift-Commander. The extensive collection of signals and lighting effects enables a deceptively realistic reproduction of the prototype.

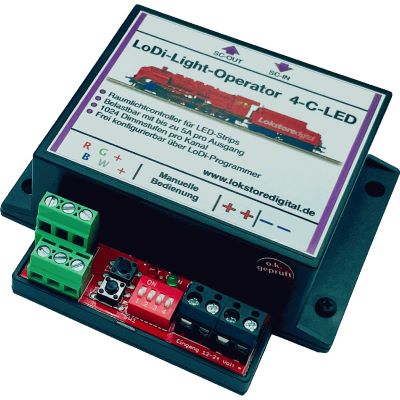

LoDi-Light-Operator 4-C-LED

What would a model railroad be without proper room lighting control? The LoDi-Light-Operator 4-C-LED was specially developed for this area of application. It offers 4 channels for RGBW LED strips. The channels work with 1024 dimming levels and 100Hz technology. How about a thunderstorm at night or clouds moving through the room?

Features:

LoDi-Shift-Commander

• DC voltage decoder for the SC bus for connection to the LoDi-Shift-Commander
• 16 channels with 150mA per output are available, the total sum of the connected channels must not exceed 2A
• You can connect light signals, LEDs, lamps, smaller motors, MP1 and MP5 as well as many other smaller consumers to the LoDi operator 16-SD-FL
• Easily configurable via the LoDi-ProgrammerFX
• In this version with integrated 1k resistor - LEDs can be connected directly to the decoder

LoDi-Shift-Commander

• Room light controller for the SC-BUS for connection to the LoDi-Shift-Commander
• All outputs operate with a frequency of 100Hz and 1024 dimming levels,which simulate a realistic sequence. (For other systems max. 255 dimming levels)
• 4 channels with a power of up to 5 amps per output are available.I.e. loadable with up to 13 meters of LED strip (with 120 LEDs per meter)
• All standard LED strips with an operating voltage between 12 - 24 volts can be connected to the LoDi-Light-Operator 4-C-LED can be connected.
• Manual operation possible
• Freely configurable via the LoDi ProgrammerFX

Specs:

• Gauge: All

Further links:

• Print View

CAUTION: Not suitable for children under 3 years. Danger of swallowing! Age recommendation from 14 years.
