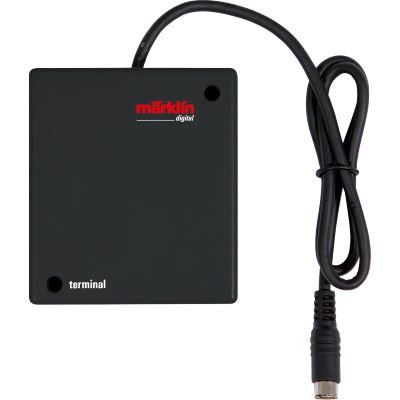

Märklin 60145 Terminal

Märklin's terminal is a versatile accessory for your model railroad control system. With a fixed 9-pin connection cable that is 60 cm long, it offers a convenient solution for connecting main lines. A 9-pin socket makes it possible to connect additional terminals or other devices to the main line. In addition, the terminal has 4 sockets with 7-pin connection for the Mobile Station or other peripheral devices. Use Märklin's terminal to make your model railroad control flexible and efficient.

Features:

• Fixed 9-pin connection cable, 60 cm long (can be extended with 60126)
• 9-pin socket for an additional terminal or other devices on the main line
• 4 7-pin sockets for connecting Mobile Station (adapter cable 60124 required) or other peripheral devices
• Connection option for additional devices from the digital range to the Central Station
• Dimensions: 96 × 85 × 40 mm

Specs:

• Gauge: All

Instruction manual / Safety instructions:

• Manual (2.94 MB)

Further links:

• Print View

CAUTION: Not suitable for children under 3 years. Danger of swallowing! Age recommendation from 14 years.
