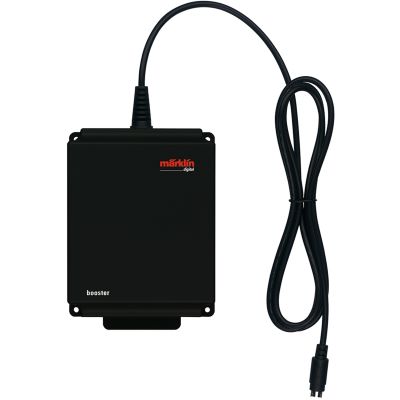

Märklin 60175 Booster

Märklin presents the booster, a high-quality power amplifier for digitally controlled large layouts. It is multi-protocol capable and can be connected directly to the Central Station 60216, 60226 and 60213-60215 via a 7-pin data bus line.

Features:

• Power amplifier for digitally controlled large systems
• Multi-protocol capable in conjunction with the Central Station 60216, 60226 and 60213-60215
• Connection via 7-pin data bus cable directly to the Central Station 60216, 60226 and 60213-60215
• Several boosters can be used in one system via terminals 60125/60145
• Automatic log-on to the Central Station 60216, 60226 and 60213-60215
• Status indication via LED on the booster and graphically on the Central Station display
• When using the switching power supply 60061, the maximum output power is 58 VA and the maximum current is 3 A
• Dimensions: 150 x 110 x 42 mm

Specs:

• Gauge: All

Instruction manual / Safety instructions:

• Manual (4.28 MB)

Further links:

• Print View

CAUTION: Not suitable for children under 3 years. Danger of swallowing! Age recommendation from 14 years.
