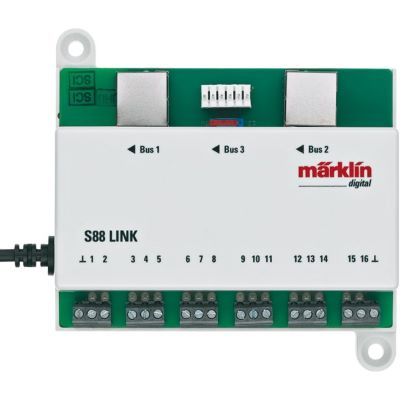

Märklin 60883 L88 (Link s 88).

The Märklin 60883 L88 (Link s 88) is a digital control unit for model railroad layouts. It enables the connection of Märklin Motorola-based digital layouts to a computer or a network. This device can be used to control various digital components such as turnouts, signals and accessories.

The L88 acts as an interface between the Märklin digital control center and a computer or network, allowing the model railroad to be controlled and monitored via a software application. This allows complex operating sequences to be automated and optimized.

The device is particularly suitable for advanced model railroad enthusiasts who want to expand their layout with digital functions and optimize the operation of their model railroad.

Connection option for s 88 (60881) and s 88 DC (60882) and the previous s 88 feedback modules (6088 and 60880) to the Central Station II or to the 60125 terminal. A previous connection socket is available for the 6088 and 60880 feedback modules, as well as two RJ 45 sockets for the new 60881 and 60882 feedback modules.

There are also 16 inputs for analog 60881 contact sensors. These 16 inputs can be specially configured for track diagram control panels so that a matrix with up to 64 buttons can be created.

Features:

• All connections with elevator terminals

Specs:

• Gauge: All

Instruction manual / Safety instructions:

• Manual (2.3 MB)

Further links:

• Print View

CAUTION: Not suitable for children under 3 years. Danger of swallowing! Age recommendation from 14 years.
