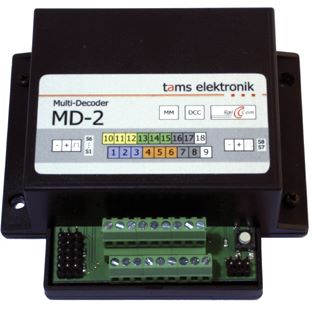

tams elektronik 43-03127-01 Multi-decoder MD-2, Fertig-Gerät

Flexible accessory decoder for controlling servos, points and/or other consumers. Ready-to-use device.

Features:

• for controlling 8 servos
• additional 4 x 2 outputs for connecting push-buttons or solenoids and/or other loads
• can be used in a purely analog environment when connecting push-buttons
• Formats: DCC and Motorola
• Max. total current: Connection area 1 and 2 1,000 mA each (continuous)
• Dimensions (approx.): 100 x 90 x 35 mm
• Weight (approx.): 88 g

This is where the continuous text comes in.

Fields of application:

• Control of servos, e.g. in points, wing signals, barriers or gates
• Actuation of magnetic items, e.g. points with double coil drive (with or without limit switching), wing signals with double coil drive, uncouplers
• Activation of other consumers, e.g. light signals (between which switching takes place) or lighting (which is switched on and off)

Specs:

• Gauge: All
• Type: Accessories

Further links:

• Print View

CAUTION: Not suitable for children under 3 years. Danger of swallowing! Age recommendation from 14 years.
