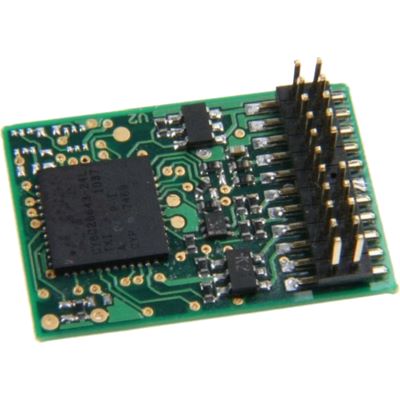

Uhlenbrock 74560 ID2 Decoder, PluX22

The ID2 PluX22 decoder is equipped with seven special function outputs. The outputs can either be switched cyclically or switched on for a limited time.

Features:

• DCC and Motorola II data formats
• With seven special function outputs
• Direction-dependent switching of outputs (e.g. for control cars)
• Outputs can optionally be switched on for a limited time (e.g. for electric couplings)
• Outputs can optionally switch cyclically (flashing generator e.g. for Swiss tail lights)
• Programmable motor characteristic curve
• Programmable via CV (DCC) and via Motorola digital central unit
• Loadable up to 1.2 A, each output up to 0.2 A
• Size: 22.00 x 15.00 x 3.80 mm
• PluX 22 connection

Specs:

• Gauge: H0
• Type: Accessories

Instruction manual / Safety instructions:

• Manual (714.89 KB)

Further links:

• Print View

CAUTION: Not suitable for children under 3 years. Danger of swallowing! Age recommendation from 14 years.
