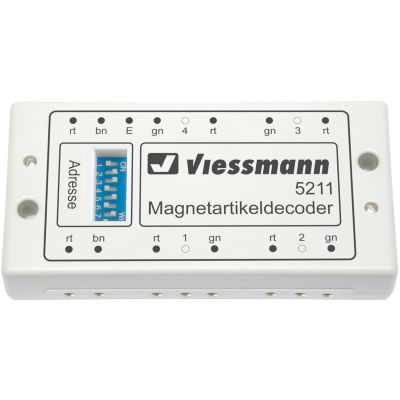

Viessmann 5211 Motorola-Magnetartikel-Decoder

The Viessmann Motorola solenoid decoder has 8 pulse outputs for controlling 4 solenoid items with dual coil drive. The coding switch for setting 80 possible decoder addresses is accessible from the outside. It is also equipped with an E socket for feeding the switching current via a separate transformer. This ensures safe switching of the turnouts and signals even with many trains running at the same time. The powerful pulse outputs can be loaded with up to 2 A.

Features:

• Motorola magnetic particle decoder
• Manufacturer: Viessmann
• 8 pulse outputs to control 4 solenoid articles with double coil drive
• coding switch for setting 80 possible decoder addresses, externally possible
• with E-socket for feeding the switching current via a separate transformer
• powerful pulse outputs with up to 2 A load capacity
• short circuit and overload protection
• Positive switching pulses
• Compatible with Viessmann Commander, Märklin Digital and Uhlenbrock Intellibox

Specs:

• Gauge: All
• Type: 1

Instruction manual / Safety instructions:

• Manual (1005.49 KB)
