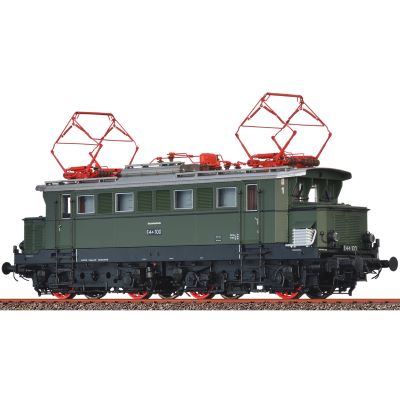

Brawa 63119 N electric locomotive E44 100, DB, Ep. III, DC-sound

Brawa 63119 N Electric locomotive E44 100, DB, Era III, DC sound - Highly detailed model of a historic electric locomotive

The Brawa 63119 N E-locomotive E44 100 of the German Federal Railroad (DB) in Era III is an exquisite replica of one of the first bogie electric locomotives built in series in Germany. With a multitude of finely crafted details and ultra-modern functions, this model sets new standards for all model train enthusiasts who are looking for an authentic representation of German locomotive history. The sound and digital control are particularly impressive, making this model a highlight on any N layout.

The prototype: The E44 100 - One of the first bogie electric locomotives in Germany

The E44 100, built by Siemens-Schuckert-Werke (SSW), is considered one of the pioneering electric locomotives of the Deutsche Reichsbahn Gesellschaft (DRG). At the end of the 1920s, it became clear that freight transport had to be accelerated by new, faster electric locomotives. The previous locomotives, such as the E77 and E75 series, were unable to reach the desired maximum speeds. Based on experience gained abroad and the success of the Bavarian EG 1, a new type of locomotive with Bo'Bo' bogies was developed, which went into series production in 1933 as the first bogie electric locomotive.

The E44 100 was developed as a universal locomotive and could reach speeds of up to 90 km/h. The locomotives were mainly used in central and southern Germany, and after the Second World War the majority of these locomotives remained in West Germany. DB modernized the E44, in particular by lengthening the roof shields and equipping them with Indusi, and used them until the 1980s. This locomotive is regarded as the forerunner of the later DB standard electric locomotives.

Era III: The time of modernization and upswing

Era III, which lasted from 1949 to 1970, was an important time for the Deutsche Bundesbahn (DB). After the Second World War, the rail network was rebuilt and modernized, and the E44 100 played a central role in electric freight transport. Many DRG locomotives were further developed during this time, and the E44 100 was a prime example of these modernizations. The Brawa model faithfully depicts this period with all the characteristic features of the E44 100, from the precise design to the functional details such as the pantographs and the roof area.

Brawa - The manufacturer: Precision in every respect

Brawa is known worldwide for its excellent models, which impress with their unique attention to detail and outstanding technical features. With the Brawa 63119 N electric locomotive E44 100, the manufacturer has once again created a masterpiece. The model combines finely crafted details, such as finely engraved rivets and many extra parts, with modern digital functions and an outstanding sound. This model is an excellent choice for collectors as well as for practical use on the model railroad.

Technical details of the Brawa 63119 N electric locomotive E44 100

The Brawa 63119 N electric locomotive E44 100 offers a variety of technical highlights that shine in both analog and digital operation. The locomotive is equipped with a **Next18 interface**, which allows easy integration into digital control systems. The model is digital and equipped with **sound**, providing realistic sounds and light changes. All lighting functions can be controlled digitally, including the engine room lighting, which makes the model particularly interesting for digital systems.

Another highlight is the **LED lighting** with a light change from red to white, which further enhances the realistic operation of the locomotive. The **forehead lighting** is also generated by **LEDs**, and the 3rd headlamp can even be switched off in analog form in the sound version. The car also has **short coupling kinematics according to NEM**, which enables precise coupling with other vehicles.

The model is equipped with **two traction tires**, which ensure excellent grip and thus reliable driving characteristics. Particularly noteworthy is the integrated **flying mass**, which ensures smooth and quiet running.

Sound version: Realistic noises and perfect running characteristics

The Brawa 63119 N electric locomotive E44 100 model in the sound version offers a true wonder of sound. The sound decoder is integrated on the main circuit board and uses the latest 16-bit technology with up to **8 independent channels**. The sound quality is outstanding, and the sounds of the original - from the engine running to braking - are reproduced realistically. Thanks to the **optimized motor and load control**, the locomotive also offers excellent running characteristics, both in digital and analogue operation.

The sound functions can be used in all common digital systems, including **DCC, SX1 and SX2, Motorola**. This makes the locomotive versatile and easy to integrate into various model railroad layouts.

Design and color scheme of the Brawa 63119 N electric locomotive E44 100

The design of the Brawa 63119 N electric locomotive E44 100 impresses with its faithful reproduction of the original locomotive. Particularly noteworthy are the fine rivets and engravings that give the locomotive a particularly realistic look. The extra details such as the grab rails, ladders and the multi-part cooling coil also contribute to the authenticity. The roofs are correctly reproduced in both the normal and extended versions and feature numerous extra details. The model has **freestanding roof lines** and **various insulators** that correspond exactly to the prototype.

The **current collectors** are finely detailed, as are the **roof walkways**, which have been reproduced in different lengths. The **roof equipment** has also been reproduced in detail, making the model particularly attractive for collectors and model railroad enthusiasts.

Functions and accessories of the Brawa 63119 N electric locomotive E44 100

The Brawa 63119 N electric locomotive E44 100 is equipped with many technical and functional features that make operation on your model railroad realistic and reliable. In addition to the digital control and the sound function, the light functions can also be precisely controlled. The **forehead lighting** changes from red to white, and the **driver's cab lighting** and the engine room lighting are also equipped with LEDs in the sound version.

The **coupler pocket according to NEM** makes it possible to couple the car with other vehicles without any problems. The **short coupling kinematics** ensure precise and stable coupling, which simplifies the operation of the locomotive on your model railroad and at the same time makes it more realistic.

Care and maintenance of the Brawa 63119 N electric locomotive E44 100

As with all model railway vehicles, regular care is also required for the Brawa 63119 N E44 100 electric locomotive to maximize its service life. Make sure to regularly remove dust and dirt from the locomotive, especially from the wheelsets and pantographs. The traction tires should be checked regularly for functionality and replaced if necessary.

It is best to use a soft cloth for cleaning to avoid scratching the paintwork. Make sure that all moving parts are lubricated regularly, especially the couplings and bogies, to ensure smooth operation.

Conclusion & purchase recommendation

The Brawa 63119 N electric locomotive E44 100 is an outstanding model for anyone interested in the German Federal Railroad of Era III and the history of electric locomotives. With its attention to detail, precise sound functions and modern digital controls, this model is an excellent choice for both collectors and model railroaders. It not only impresses with its realistic replica of the E44 100, but also with its outstanding running characteristics and versatile functions. Anyone looking for a high-quality and functional locomotive for their model railroad will be more than satisfied with the Brawa 63119 N electric locomotive E44 100.

Features:

• Length over buffers: 95.6 mm
• Close coupler kinematics built in
• Sound: built-in (16-bit technology with 8 channels)
• Decoder: built-in (Döhler+Haass)
• LED lighting with red-white light change
• Front lighting via LED with light change
• Driver's cab lighting and engine room lighting
• Digital: yes (Next18 interface)
• Interface: Next18
• Built-in flywheel mass
• Traction tires: 2
• SBS 39 type pantograph
• Lighting: LED
• Minimum radius: 192 mm
• Power system: 2L direct current (DC)
• Lighting: red-white light change
• Coupling system: NEM coupling shaft with KK kinematics

Specs:

• Gauge: N
• Rail Company: DB
• Era: III
• Color: Green
• Electricity System: DC
• Digital: Yes
• sound: Yes
• News: 2025
• Type: Electric loco
